HY-D56 Double-Sided Dust Removal Automatic Screen Printing Machine Label Packing Silk Screen Printer Machinery Heat Transfer

Product Description

Description:
A fully automatic printing line that replaces the flat-lift semi-automatic printing press. Printing materials on the front and back of the dust removal static; camera plus display to assist the installation of the screen version alignment, novice can also be installed once accurately; PLC touch screen control, easy to learn; can use the original Shengping semi-automatic screen version, reducing new investment.
Printing technical parameters:

Model	HY-D56	HY-D58
Max. Printing Size	500×650mm	500×800mm
Printing Speed	800pcs/h	800pcs/h
Max.Screen Frame Size	750×1030mm	750×1230
Print Thickness	0-1mm	0-1mm
Printing Table Size	590×860mm	590×1060mm
Repeated Positioning Accuracy	<0.02mm	<0.02mm
Squeegee Skewness	0-30º	0-30º
Screen Vertical And Horizontal Adjustment	±5mm	±5mm
Power Supply	3N-50Hz 380V 3KW	3N-50Hz 380V 3KW
Air Source Pressure	0.4-0.6MPa	0.4-0.6MPa
Overall Dimensions	L2800×W1900×H1850(mm)	L3000×W1900×H1850(mm)
Weight	1200kg	1320kg

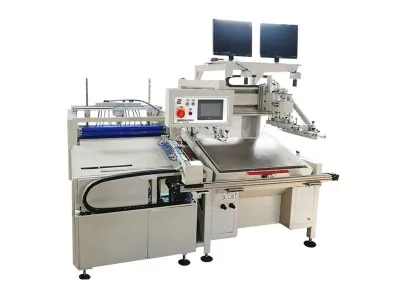

Machine Photos:
Print sample details

Certificate
FAQ
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment . set research, design, production, development, sales in one, to "practical, innovative" for the purpose, to "integrity, pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority of customers.
