Powder Sieving Machine Vibrating Screen Sifter Machine

Product Description

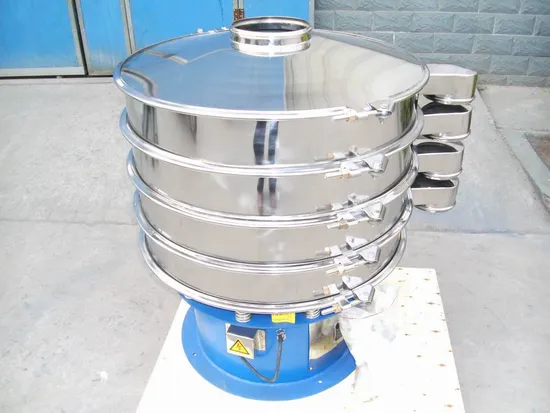

VIBRATING SIFTER MACHINE
Vibrating sifter machine is ideal for classification and separation of dry powders, granules and semi-solids/liquids. The material falls on the sieve through the inlet at the top, the particles smaller than the mesh size pass through the sieve and fall to the lower layer, and the larger particles stay on the sieve surface and are discharged from the discharge port to pass through the sieves of different mesh sizes. and 3D vibratory motion to screen products, it can accurately screen, sort, dedust and filter a variety of products and materials, is a versatile solution for solid and liquid screening, and can be fully customized to your application.
Application:
The vibrating sifter machine is widely used in chemical industry, pharmaceutical powder, liquid, paint, pigment, cosmetics, grease, resin, ceramic slurry, clay slurry, quicklime, refractory powder, metallurgical powder, electromagnetic powder, grinding powder, fruit juice, beverage, sugar, salt, monosodium glutamate , seasoning, milk powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate, co-solvent, fire extinguishing agent and sieving and filtration in the process of sewage and wastewater treatment in the environmental protection industry.
Features Improves your product quality - Eliminates oversize contamination from your powders The vibrating sifter machine can be fitted with 1 to 4 separation stages, allowing separation of 2 to 5 product fractions. Reduced cleaning downtime - bouncing ball/ultrasonic cleaning unit prevents clogging of the sieve and all contact parts are fully cleanable. Enclosed system - Enclosed system removing the issue of airborne dust. Contamination-free from a manual interaction. Small footprint - compact form requires minimal headroom and can easily fit into your existing production line Reduced noise levels - The rubber suspension system reduces mechanical noise and ensures quiet operation down to 60 decibels.
Technical parameters

Model	Diameter (mm)	Feeding Size (mm)	Frequency (RPM)	Layers	Power (kw)	Capacity (kg/h)
ZS-400	400	<10	<1500	1~5	0.18	100
ZS-600	600				0.25	200
ZS-800	800				0.55	500
ZS-1000	1000				0.75	800
ZS-1200	1200				1.1	1200
ZS-1500	1500				1.5	1800
ZS-1800	1800				2.2	2000
