Three-Piece Backshell USB Products

Product Description

Product Description Product Overview
Three-Piece Backshell USB Products is a USB connector product with a special design, the core feature of which is that its backshell consists of three separate but mating parts. This design not only enhances the overall structural strength of the connector, but also provides additional protection to ensure the stability and reliability of the USB interface in various environments.
II. Main Features
1. Three-piece backshell design: the backshell is divided into three pieces, each of which bears a specific function, such as fixing, sealing and electromagnetic shielding. This design makes the assembly of the backshell more flexible and can be adjusted according to actual needs, and also helps to improve the durability and reliability of the product.
2. Enhanced Protection: The three-piece backshells provide additional physical protection for the USB ports and can effectively resist external impact, extrusion and friction. Some products are also waterproof, dustproof and other sealing properties to ensure that the USB port works properly in harsh environments.
3. Electromagnetic Shielding: In order to minimize Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), some Three-Piece Backshell USB Products also have a built-in electromagnetic shield. This helps protect the integrity and accuracy of signaling and improves the stability and speed of data transmission.
4. Wide Compatibility: Despite the special Three-Piece Backshell design, these products usually still follow the USB standard interface specification. As a result, they are compatible with most USB-enabled devices, facilitating data transfer and power supply between different devices.
III. Technical Specifications
Interface type: USB standard interface (e.g. USB 2.0, USB 3.0, etc.)
Data transfer rate: Depends on the USB version, e.g. USB 3.0 interface has a theoretical transfer rate of up to 5Gbps
Power supply: supports standard USB power supply specifications (typically 5V DC)
Material: Metal or plastic (depending on product design and manufacturer's choice)
Protection level: may reach different IP protection level according to the design, providing dust and waterproof protection
IV. Use and Maintenance
Installation: Please follow the product manual or the guidelines provided by the manufacturer to ensure that the three-piece backshell is properly assembled and firmly fixed.
Maintenance: Regularly check the status of the connector and its backshell, and replace or repair it promptly if it is damaged or loose. Keep the connector clean and dry to avoid dust and moisture ingress.
V. Conclusion
With its unique three-piece backshell design and high reliability, Three-Piece Backshell USB Products has been widely used in applications that require stable data transmission and power supply. Whether it is in the field of industrial control, medical equipment or communication equipment, these products have shown excellent performance and wide compatibility.

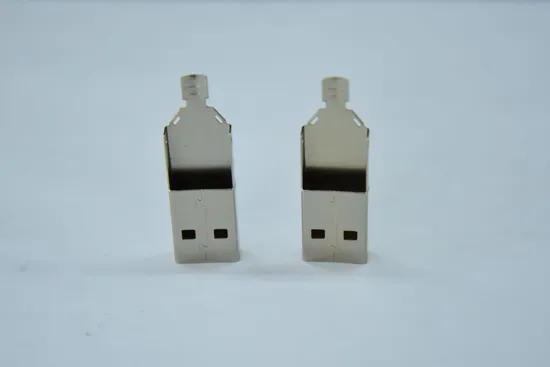

Detailed Photos
