Movable Spider Construction Well Climbing Hydraulic Concrete Spreaderplacer Beton Concrete Placing Boom

Product Description

Product Description
Introduction of Mobile Spider Hydraulic Concrete Placing Booms Placer Beton Placing Boom Concrete Spreader
Hydraulic placing machine is an extension of the traditional placing machine, an intelligent concrete placing machine, on the basis of the traditional placing machine to improve the operation of the inconvenience and personnel costs and pouring efficiency of a new type of placing machine.
Features:
1. Specialized design: It is mainly used for concrete pouring in elevator shafts, especially suitable for high-rise building construction.
2. Space-saving: As its design focuses on the inside of the elevator shaft, it does not need to take up much external space and can work effectively in a narrow construction environment.
3. High degree of automation: Many models are equipped with automatic control function, which can be controlled by remote control or operation panel to enhance the safety and convenience of operation.
4. Height adjustment of fabric: The fabric position can be automatically adjusted according to the height of the elevator shaft to ensure that the concrete or other materials are smoothly transported to the target position.
5. Strong stability: the structure is solid, can withstand large working load, to ensure the uniformity and stability of the fabric.
zmwm21
Product Parameters
Parameter of Mobile Spider Hydraulic Concrete Placing Booms Placer Beton Placing Boom Concrete Spreader

Mobile Hydraulic Concrete Placing Boom

Project name	HGY13	HGY15	HGY17	HGY19	HGY21	HGY23
Max. working radius	13m	15m	17m	19m	21m	23m
Tilt working range	0°~84°	0°~89°	0°~84°	0°~84°	0°~84°	-4°~90°
Slewing working range	Full Rotary
Motor power of hydraulic washing system	4kw	4kw	5.5kw	7.5kw	22kw	22kw
Working pressure of hydraulic system	20mpa	16mpa	20mpa	20mpa	32mpa	32mpa
Slewing speed	0.46r/min	0.2-0.3/min	0.2-0.3/min	0.2-0.3/min	0.2-0.3/min	0.2-0.3/min
Concrete pipe specification	∅125*4
Length of hose at arm end	3m
Outrigger span	4000*4000mm		4231*4231mm		5167*5167mm
Overall size of the machine	8900*4000*2585	6000*5000*4000	6670*5730*4510	6500*4800*4600*5312		6839*5089 *5060*5800
Slewing angle	360°	360°	360°	360°	360°	360°
Weight (self-weight/counterweight T)	2.7/4.3	3.23/5.43	5/7.2	5.3/7.5	7.7/9.9	8/10.2

Climbing Hydraulic Concrete Placing Boom

Item	HGY19	HGY21
Boom length	19m	21m
Slewing angle	360°	360°
Slewing speed	0.32 r/min	0.32 r/min
Pitch angle	0~85°	0~85°
Slewing brake	Normally Closed	Normally Closed
Ambient temperature	-5C -40°C	-5C -40°C
Weight	11.7 T	11.7 T
Power supply	380V/50HZ	380V/50HZ
Wattage	5.5	5.5
Protection class	IP54	IP54
Insulation grade	F	F
System pressure	32mpa	32mpa
Control mode	Wireless	Wireless
Pipe cleaning method	Water/Dry Cleaning	Water/Dry Cleaning
Boom opening method	Two Sections	Two Sections
Conveying pipe diameter	∅ 125mm	∅ 125mm
End hose	3m	3m
Length	9434/8062mm	9434/8062mm
Turning angle	85/180°	85/180°
Fixed arm length	2516mm	2516mm
Lifting height	0~4m(Adjustable on request)	0~4m(Adjustable on request)
Lifting speed	0.6 m/min	0.6 m/min
Tower structure and size (truss)	1000x1000mm(Adjustable on request)	1000x1000mm(Adjustable on request)

Stair-climbing Hydraulic Concrete Placing Boom

Model		HGY21	HGY24/3	HGY28/3	HGY32/3
Size of concrete hose (OD x pipe wall thickness)(mm)		∅125x4	∅133x4	∅133x4	∅133x4
Size of concrete hose (inner Dia x length) ("xnm)		5"x3000	5"x3000	5"x3000	5"x3000
Work radius			32	32	32
Working height (to arm root hinge point)		25.16m	22.5 m	22.5 m	22.5 m
Three-section hydraulic folding type	One-section arm	--	11.85m	10.5m	13.85m
	Two-section arm		8.60m	9.2m	10.6m
	Three-section arm		5.56m	8m	7.56m
Boom angle	One-section arm	85°~ 180°	0°~ 90°	0°~ 90°	0°~ 90°
	Two-section arm		0°~ 180°	0°~ 180°	0°~ 180°
	Three-section arm		0°~180°	0°~180°	0°~180°
Slewing range		360°	360°	360°	360°
Slewing speed		0.32 r/min	0-0 .25 r/min	0-0 .25 r/min	0-0 .25 r/min
Motor power		5.5KW	18.5KW	18.5KW	18.5KW
Hydraulic system pressure		32MPa	32MPa	32MPa	32MPa
Hydraulic oil grade		--	Winter H46/Summer H68	Winter H46/Summer H68	Winter H46/Summer H68
Climbing mode		--	Floor Climbing	Floor Climbing	Floor Climbing
Independent height(m)		25.16	22.5	22.5	22.5
Operation mode		Wireless remote control	1.Wired remote control 2.Wireless remote control 3.Panel Remote Control
Power supply		380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Wind speed	Working	--	≤56 kmy/h	≤56 kmy/h	≤56 km/h
	Non-working		≤72 km/h	≤72 km/h	≤72 km/h
Working temperature		--	-20° C~40°C	-20° C~40°C	-20° C~40°C
Working altitude		--	≤ 1000m	≤ 1000m	< ≤1000m
Self-weight		1800Kg	22000Kg	22000Kg	22000Kg

Detailed Photos

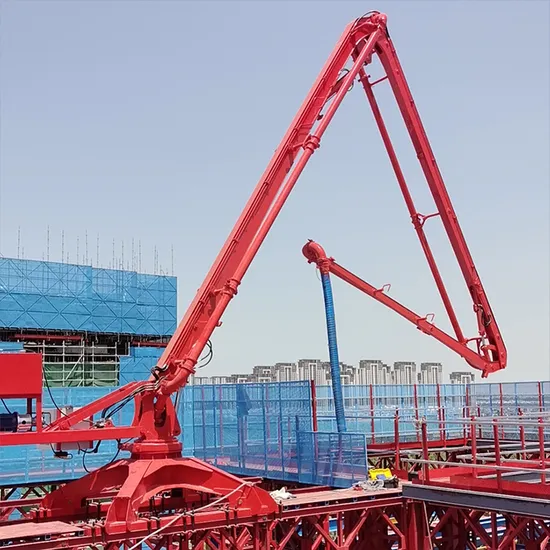

Photos of Mobile Spider Hydraulic Concrete Placing Booms Placer Beton Placing Boom Concrete Spreader
Hydraulic placing machine is an extension of the traditional placing machine, an intelligent concrete placing machine, on the basis of the traditional placing machine to improve the operation of the inconvenience and personnel costs and pouring efficiency of a new type of placing machine.
Features:
1. Specialized design: It is mainly used for concrete pouring in elevator shafts, especially suitable for high-rise building construction.
2. Space-saving: As its design focuses on the inside of the elevator shaft, it does not need to take up much external space and can work effectively in a narrow construction environment.
3. High degree of automation: Many models are equipped with automatic control function, which can be controlled by remote control or operation panel to enhance the safety and convenience of operation.
4. Height adjustment of fabric: The fabric position can be automatically adjusted according to the height of the elevator shaft to ensure that the concrete or other materials are smoothly transported to the target position.
5. Strong stability: the structure is solid, can withstand large working load, to ensure the uniformity and stability of the fabric.

Hydraulic placing machine is an extension of the traditional placing machine, an intelligent concrete placing machine, on the basis of the traditional placing machine to improve the operation of the inconvenience and personnel costs and pouring efficiency of a new type of placing machine.
Features:
1. Adapt to staircase environment: Compact design, able to work in narrow spaces such as staircases, focusing on the construction needs of staircases.
2. Climbing ability: With strong climbing ability, it can easily cope with the slope of stairs to ensure smooth laying of concrete and other materials.
3. Intelligent control system: Many equipments are equipped with intelligent control system, which supports operators to monitor and operate by remote control, which is safer and more efficient.
4. Easy to operate: Some models support one-person operation, which reduces the reliance on manpower and lowers the labor intensity of workers.
5. Improve construction efficiency: By placing the fabricator directly on the stairs, the time spent on additional transportation and handling of materials in the traditional method is reduced, which improves the overall construction efficiency.
