Wholesale Best Seller Router Machine with Saw Atc Router CNC Router for Woodworking with Reasonable Price
Basic Info.
Model NO.
A6-S
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Woorking Area
1300*2500*300mm
Spindle Power
9.0kw
Saw
3kw/5.5kw
Guide Rails
Hiwin Square Guide Rails
Table Surface
Vacuum Table with T-Slot and 7.5kw Vacuum Pump
Command Code
G Code
Control System
Syntec 60we
Model of Driver
Servo Motor
Z- Axis Height
300mm
Oil Lubrication System
Auto
Spindle
Air Cooling
Tool Change Typy
Atc
Brand
Sign CNC
Saw Power
3kw / 5.5kw
Reducer
Japanese Shimpo Planetary Reducer
Transport Package
Standard Export Wooden Box
Specification
18 CBM
Trademark
SIGN CNC
Origin
China
HS Code
846599
Production Capacity
300 Set/Month
Product Description

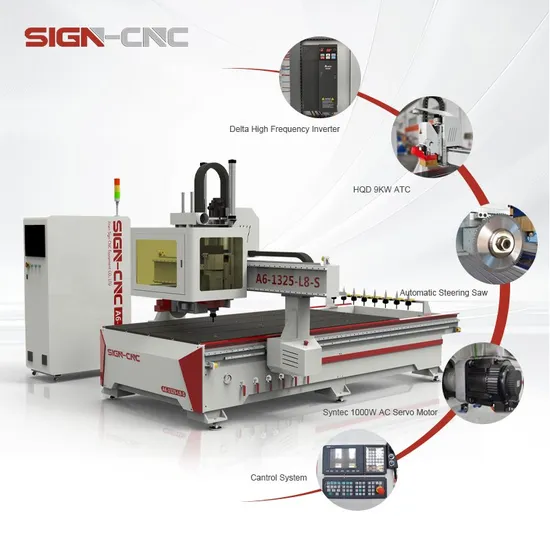

Sign CNC Multi Function Wood Atc CNC Router Machine with SawApplication:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:
| Model | A6-1325-L8-S | A6-1530-L8-S | A6-2030-L8-S | |
| Working area | 1300*2500mm | 1500*3000mm | 2000*3000mm | |
| Z feeding | 300mm | |||
| Frame structure | Steel casting-welding | |||
| Type of table | Vacuum table with T-slot and 5.5kw vacuum pump | |||
| Z axis transmission | Ball screw and 25 square guide rails | |||
| X Y axis transmission | TBI / Hiwin 25 square guide rails + rack | |||
| Max. Rapid Travel Rate | 33000mm/min | |||
| Max. Working Speed | 25000mm/min | |||
| Command Code | G code * .u00 * .mmg * .plt | |||
| Operating voltage | AC 380V/50Hz | |||
| Spindle power | HQD 9.0 KW | |||
| Tool Magazine | 8 - 12 | |||
| Type of cooling | Air cooling | |||
| Spindle Speeds | 0-24000rpm/min | |||
| Drive motor type | 850W servo motor | |||
| operating system | Taiwan SYNTEC 60WE | |||
| Dust Collector | With | |||
| Lubrication system | With | |||
| Saw | With | |||
| Supported software | Artcam software, Type3 software | |||
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree | |||
| Warranty | Two year | |||
Samples:
Payment methods:
| MOQ | 1 set |
| Port of loading | Qingdao, China. Other cities are ok |
| Time of delivery | 15-25 working days after receiving payment |
| Payment methods | T/T in advance, 50% deposit, the balance should be paid before shipping |
Payment methods:
| MOQ | 1 set |
| Port of loading | Qingdao, China. Other cities are ok |
| Time of delivery | 15-25 working days after receiving payment |
| Payment methods | T/T in advance, 50% deposit, the balance should be paid before shipping |
Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
Payment methods:
| MOQ | 1 set |
| Port of loading | Qingdao, China. Other cities are ok |
| Time of delivery | 25 working days after receiving payment |
| Payment methods | T/T in advance, 50% deposit, the balance should be paid before shipping |
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.
