Universal Radial Drilling Press Machine with Mechanical Transmission

Product Description

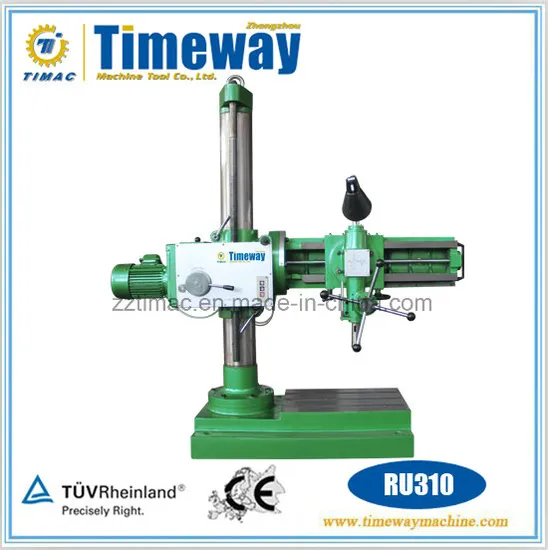

Mechanical-Type Single Column Radial Drilling Machine
RU310 RU208
Features:
Base, column, boom and gear head are made of premium high-quality cast.
Major design features include a column and a highly torsion-resistant boom.
The gears feature hardened and precision-ground chromenickel steel gears for smooth and low-noise operation.
Technical Parameter:

Specification	Unit	RU208	RU310
Max. drilling diameter	mm	25	32
Distance from spindle center to column surface	mm	390-870	390-870
Distance from spindle nose to worktable surface	mm	65-865	65-865
Spindle box horizontal travel	mm	500	500
Radial ram rotary angle	deg	360°	360°
Spindle taper	-	Morse No.3	Morse No.3
Spindle speed range and grades	rpm	100-565(4 steps)	173-960(4 steps)
Feed speed and grades	mm/r	0.1-4(4 steps)	-
Spindle travel	mm	135	120
Main motor power	kw	1.5	1.5
Net weight	kg	900	850
Floor area	mm	635x430	635x430
Worktable size	mm	-	-
Overall dimension	mm	1760x570x1900	1760x570x1900

Standard Configuration:
• Mechanical clamping for spindle head, radial arm and column
• Hardened and ground guideway & gears
• Halogen work light
• Coolant system
• Tool & tool box
• Operator manual in English
• 380V-50Hz-3Ph or as client's request.
Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
