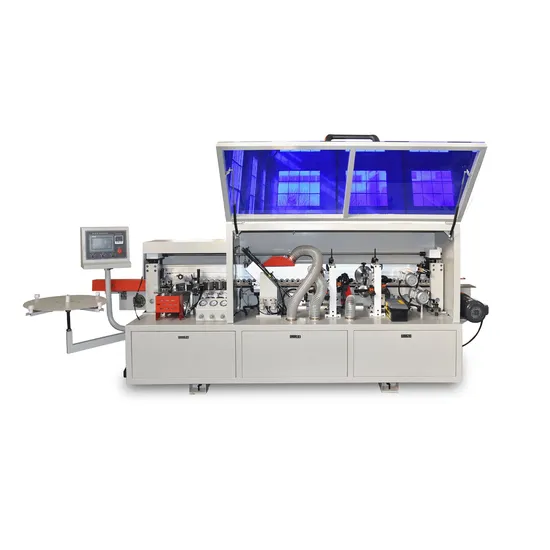

CE Certificated High Speed PVC Wood Melamine Automatic Woodworking Machinery Edge Banding Machine

Product Description

ZD500 Edge Banding Machine For sale Other Woodworking Machinery
FEATURE:
The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
Fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
Profiling unit is to make the board ending more smooth and aesthetic
Scraping unit is for a perfect finishing of the applied edge.
The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.
TECHNICAL DATA SHEET:

Power sorce	380V+N/50Hz
min.Panel lenth	168mm
Band width	12-65mm
Feeding speed	6-22M/min
Feeding power	1.5kw
Machine size	4700*950*1750mm
Workpiece thickness	10-60mm
min.Panel width	68mm
Band thickness	0.4-15mm
Pneumatic pressure	0.7Mpa
Machine weigh	1400kgs

Machine details:
Gluing:The gluing mechanism adopt a special struction to gelatinize the plates End Trimming: End reim mechanism through a precise guide track movement
and costing materials uniformaly.Ensure a more solid conglutination. adopt automatic tracking and high frequency motor fast cutting structure to
ensure the cutting surface smoothly.

Fine Trimming :
Fine trimming mechanism used for repairing the excess edge materials.
Adopt automatic tracking and high frequency motor fast cutting structure.
To ensure the trimming plates smoothly.

Scraping: Buffing:
Scraping unit for a perfect finishing of the applied edge. The buffing device adopts the board processed by cotton polishing wheel.By end
polishing to make a more smooth surface.

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE&ISO 9000 Certificate
