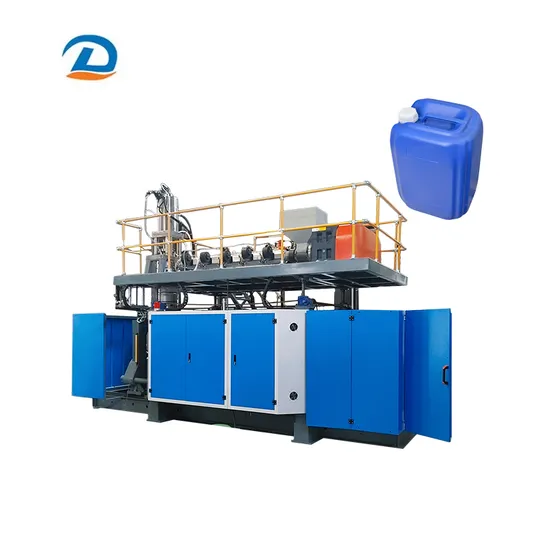

Good PE PVC Plastic Bottle Drum Blow Molding Machine

Product Description

Extrusion Blowing Mold Making Machine
producingPP/PE/PU/PC/PVC/PETG/HDPE/LDPE/ABS/..... plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Product Description
Product Parameters

Model	YSD-80	YSD-90	YSD-100	YSD-110	YSD-120
Maximum product volume L	30	50	100	160	350
Screw diameter mm	80	90	100	110	120
Screw long diameter ratio	1:26
Extruder motor power KW	22	30-35	37-45	45-75	75
Plasticization capacity kg/h	85-100	120-150	170-200	200-250	250-300
Number of jobs	single station
Lock mode form	Servo hydraulic pressure
Wall thickness controller	100
Storage tank L	5	7.5	10	12	16
Heating section	6-10	9-13	9-13	9-13	9-13
Heating power Kw	15	20	38	42	52
Modular rorce(KN)	160	200	430	600	800
Servo motor(KW)	11	11	11	18.5	22
Template size(width * height) mm	Depends on product
Template openg mm	700	1200	1400	600-1400	500-1400
Maximum open and closed mode travel mm	350	900	900	900	900
Squeeze exit die maximum diameter mm	Depends on product	100-300	Depends on product
Gas source pressure Mpa	0.8
Source displacement m/min	0.8	1.0	1.2	1.6	2.0
Cooling water usage Mpa	0.6
Size M	3.4*1.9*2.0	3.9*2.5*2.6	4.2*2.5*2.6	6.2*2.7*4.4	6.8*3.5*5.0
Total installed power km	38	65	90	110	155
Total weight of machine T	12	14	16	20	26
