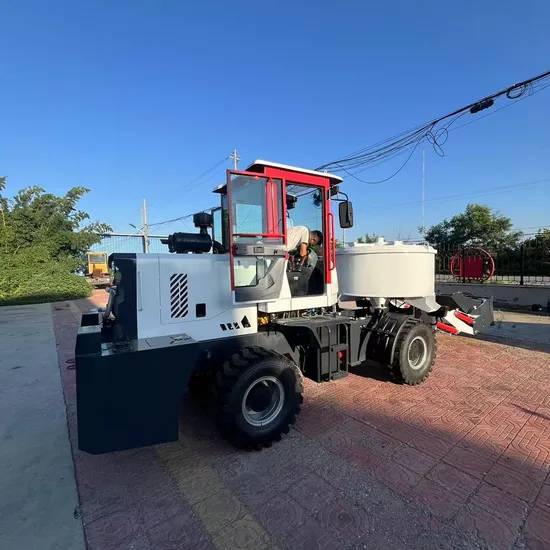

Customized Construction Concrete Pump Mobile Tractor Self Loading Mini Volume Cement Concrete Mixer Truck
| US$9,680.00-12,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
1600
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE, ISO
Condition
New
Color
Customized
Engine Model
4102 Boosting
Weight
4500kg
Driver′s Cab
Twin/Single
Tank Diameter
2000mm
Tank Height
900mm
Tank Volume
1.5-3.5 Cubic Meters
Transport Package
Nude Package
Specification
4850 * 2000 * 2500
Trademark
XINYU
Origin
China
Production Capacity
12000 Sets/Year
Packaging & Delivery
Package Size
615.00cm * 200.00cm * 235.00cm
Package Gross Weight
6800.000kg
Product Description
Product Description| Engine model | 4102 Boosting | Mixing reducer | Hard tooth surface multi-stage reduction |
| Transmission | Five Plus One Belt Synchronizer | Residual discharge rate | ≤ 1% |
| Transfer box | 330 Two wheel drive and four-wheel drive switching | Discharge port | 180 ° adjustable rotation |
| Front axle | Hydraulic to pneumatic brake | Water addition method | Automatic water supply |
| Rear axle | Heavy duty cast steel air brake | Weight | ≈ 4 tons |
| tyre | Six wheeled all steel wire tires | vehicle size | 4850 * 2000 * 2500 |
| water tank | Rear/side mounted | Mixing time | ≈ 3-4 minutes |
| Mixing method | Hydraulic stirring | Frame leaf spring | Internal hanging |
| Driver's cab | Twin/Single | transmission shaft | Forged 140 heavy-duty |
| Mixing tank thickness | 1.2cm wear-resistant alloy manganese plate | Hydraulic components | 12 months warranty |
| Tank diameter | 2000mm | Discharge groove length | 1000mm |
| Tank height | 900mm | The lowest point of the discharge chute | 750mm |
FAQ :
1. What Certificate do you have?
XINYU workshop meet with the ISO9001:2008 Quality System.
Some of our products with CE certificate. Some of our products meets the EPA requirements.
XINYU never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
XINYU will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the XINYU
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
