Talc Powder Grinding Mill Stone Powder Making Machine for Talc Limstone Powder Production Line

Product Description

Product Description
Product Introduction Of Talc Powder Grinding Mill Stone Powder Making Machine

Talc Powder Grinding Mill Stone Powder Making Machine was made by Clirik in 2016. This is a professional processing of limestone powder grinding machines. The fineness of the finished product can be adjusted between 325 mesh and 3000 mesh. Limestone Powder Ultrafine Grinding Mill has HGM80, HGM90, HGM100, HGM125,HGM1680 five models.
Product Parameter Of Talc Powder Grinding Mill Stone Powder Making Machine

Model	HGM80	HGM90	HGM100	HGM125	HGM168L
Ring Diameter (mm)	800	900	1000	1250	1680
Ring Number (PCS)	3	3-4	4	4	4
Roller Number (PCS)	18-21	24-29	28-36	30-44	30-40
Main Shaft Speed (r. p. min)	230-240	200-220	180-200	135-155	120-130
Input Size (mm)	≤10	≤10	≤15	≤15	≤20
Finished Size (um/mesh)	74-5 (200-2500)	74-5 (200-2500)	74-5 (200-2500)	100-6 (150-2000)	100-9 (150-1500)
Capacity (t/h)	0.4-4.5	0.6-6.5	1-9	2-16	3.8-30
Outlet Size L*W*H (m)	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	14*9*10.25	26.3*7.5*11.9

Processing Materials Of Talc Powder Grinding Mill Stone Powder Making Machine
HGM Series Talc Powder Grinding Mill Stone Powder Making Machine is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

Application Of Talc Powder Grinding Mill Stone Powder Making Machine
Talc Powder Grinding Mill Stone Powder Making Machine is widely used in metallurgy, mining, non-metallic mineral materials, chemical industry, ceramics and new materials.

Working Principle
Work Principle of Talc Powder Grinding Mill Stone Powder Making Machine

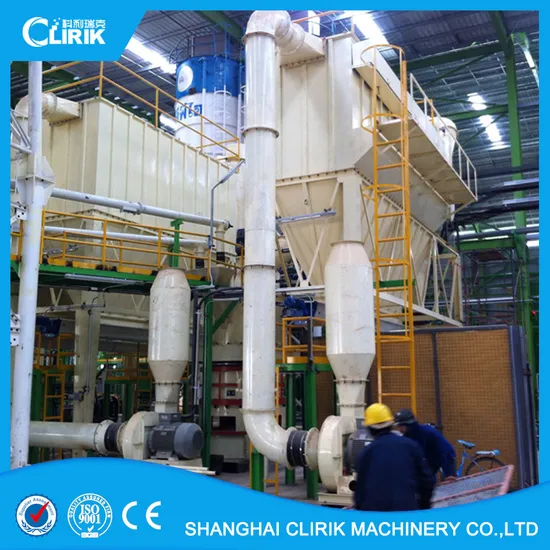

HGM series Talc Powder Grinding Mill Stone Powder Making Machine mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
Talc powder ultrafine grinding mill main bearing and each dial are driven by electricity of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After being crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe.
The materials will be driven to the edge of the dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse powder materials return to the mill and ground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which is mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler. Product Advantage
Features of Talc Powder Grinding Mill Stone Powder Making Machine
1. High efficiency
Under the same final size and power, the product capacity of ultrafine mill is twice than jet mill and agitation mill.
2. Longer lifetime of spare parts
The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.
3. High safety and reliability
There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.
4. High fineness of products
The product fineness can reach D97=<5um.
5. Environment friendly
The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard.
Company Profile
Manufacturer Introduction Of Talc Powder Grinding Mill Stone Powder Making Machine
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

So far, we have established a whole production chain. The products are cover micro powder grinding mill, high pressure suspension grinding mill, European version coarse grinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on.

Especially we independently developed HGM Talc Powder Grinding Mill Stone Powder Making Machine, which are not only renowned in the domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always on the domestic front.
Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support. Therefore, we always follow your steps, pursue your value and achieve your benefit.

FAQ
Q&A
1. What advantages does your grinding mill have? -The main advantage of our gypsum grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured. 2. Can you guarantee the quality of your grinding mill? ---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc. 3.How many years have you been manufacturing the machine? ---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality
