0.5-100 Tons Explosion-Proof Manual Chain Block/Hoist for Explosive Hazard Areas

Product Description

0.5-100 Tons Explosion-proof Manual Chain Block Manual Hoist
MSAE type explosion-proof manual chain hoist adopt parts made of beryllium bronze, aluminum bronze, brass and other materials with excellent sparking-proof characteristics. It is suitable for explosive hazard areas, in accordance with the EC94/9/EG ATEX explosion-proof standard. According to the explosion-proof grade, we provide three types of gourds: basic type, intermediate type and advanced type. We have provided related lifting hoists to many powerful clients, such as CRCC, WANDA Group, Pacific Construction, SHOUGANG Group, ANSTEEL, BAOSTEEL, DALIAN Construction, etc.
We manufacture explosion-proof hand pulling hoist according to GB25286.1-2010 non-electrical Equipment for Explosive Environments part 1: Basic Methods and Requirements and GB25286.5-2010 Non-electrical Equipment for Explosive Environments Part 5: Structural Safety type "C". The explosion-proof mark is Ex cII T4 Gb/Ex cI Mb, this product is very suitable for explosive zone such as zone 1, zone 2, oil & gas field and underground coal mine work which involve IIA,IIB,IIC grade T1-T4 flammable gas, flammable gas or steam and air formed explosive gas mixture, sufficient safety guaranteed.
Featured Options
• Low clearance hoist designed to save space
• Special explosion-proof suspension crane trolley
• Optional chain bag (fabric bag or metal case)
• Trolley fixation device to prevent accidental sliding
• Overload protection
Explosion-proof Manual Chain Hoist
• 0.5-100 Tons, Spark Free Copper Material, Customizable

MSAE Explosion-proof Manual Chain Hoist (0.5-100 Tons)
Model	MSAE005	MSAE010	MSAE015	MSAE020	MSAE030	MSAE050	MSAE100	MSAE200	MSAE300
Rated Lifting Capacity (Tons)	0.5	1	1.5	2	3	5	10	20	30
Standard Lifting Height (m)	2.5	2.5	2.5	3	3	3	3	3	3
Test Load (KN)	7.5	15	22.5	30	45	75	150	300	450
Max. Pull Force (N)	225	300	310	310	350	400	410	410×2	410×2
Lifting Chain Count	1	1	1	2	2	2	4	8	12
Lifting Chain Diameter (mm)	5	6	7.1	6	7.1	9	9	10	10
A (mm)	130	151	151	150	151	181	181	181	350
B (mm)	140	162	188	170	212	270	365	630	680
C (mm)	270	317	399	475	465	636	798	890	1380
D (mm)	35	41	46	46	56	62	85	110	110
K (mm)	26	29	36	36	40	44	62	85	85
Net Weight (KG)	6.25	10.6	13	15.3	21	38	70	156	246
Package Size (cm)	22x15x18	25x18x18.5	30x20x20	29x22x22	34x23x18	47x28x22	49x46x25	80x70x23	80x70x37
Weight for 1m Extra Lifting Height	1.8	1.8	2.1	3.6	4.2	5.1	9.3	19.3	28.3

Explosion-proof Hand Pulling Chain Trolley
• 0.5-50 Tons, Spark Free Copper Material, Customizable

Explosion-proof Hand Pulling Chain Trolley (0.5-50 Tons)
Rated Lifting Capacity	I-beam Width	Turning Radius	Net Weight/KGS	A	B	C	H
0.5t	68-126	0.9m	8.5	283	186	200	150
1.0t	80-146	1.0m	12.5	317	225	253	170
2.0t	80-168	1.1m	17	360	260	310	180
3.0t	88-168	1.3m	28	380	300	357	190
5.0t	100-180	1.4m	48	400	353	400	210
10t	122-203	1.7m	81	443	470	520	220

Explosion-proof Manual Trolley
• 0.5-50 Tons, Spark Free Copper Material, Customizable

Explosion-proof Manual Trolley (0.5-50 Tons)
Rated Lifting Capacity	I-beam Width	Turning Radius	Net Weight/KGS	A	B	C	H
0.5t	68-126	0.9m	4.8	208	186	200	150
1.0t	80-146	1.0m	8	242	225	253	170
2.0t	80-168	1.1m	13	280	260	310	180
3.0t	88-168	1.3m	23.7	300	300	357	190
5.0t	100-180	1.4m	43	316	353	400	210
10t	122-203	1.7m	76	343	470	520	220

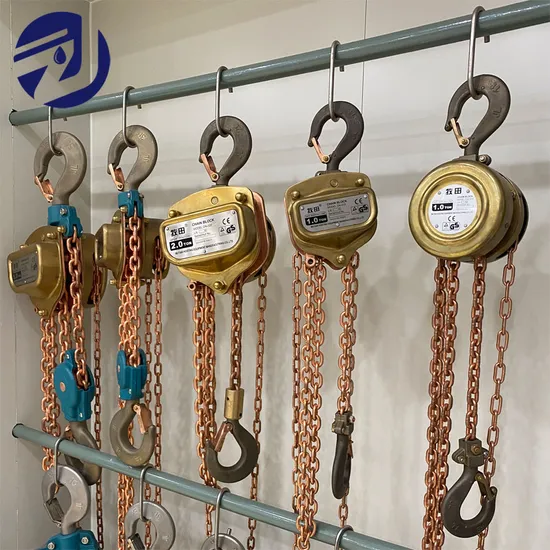

Product Display
Applications
