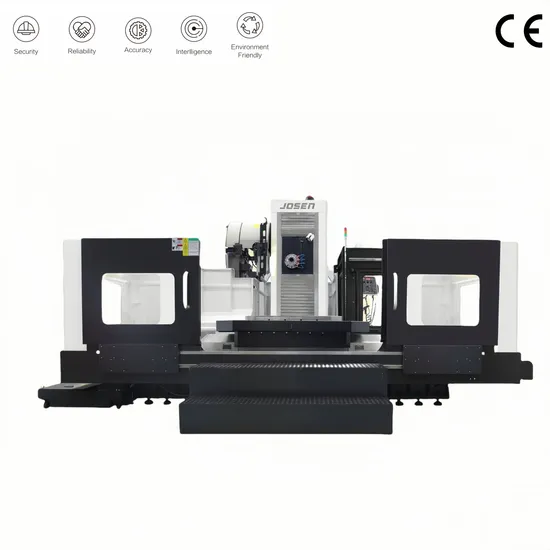

Metal Machining Centershorizontal Machining Center High Quality Horizontal Machining Center High Precision Horizontal Machining Center HD-125e
| US$30,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HD-125E
Type
Meter Milling Machine
Object
Tool/Hardware
Structure
Bed type
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001, ISO 14000
Condition
New
Gross
24500kg
Spindle Speed Change
Belt Drive
Tool Shank Type
Bt-50
Transport Package
Wooden/Iron Bracket/Wooden Box
Specification
6400*5912*3600mm
Trademark
Josen
Origin
Changzhou, Jiangsu, China
HS Code
8457101000
Production Capacity
1000pieces/Year
Packaging & Delivery
Package Size
640.00cm * 591.20cm * 360.00cm
Package Gross Weight
24000.000kg
Product Description
Cnc Machine Center CNC Horizontal Machining Center Hot selling CNC horizontal machining center High Precision CNC Horizontal Machining Center HD-125E Product DescriptionBasic Info:
| Main technical parameters | Unit | HD-63E | HD-80E | HD-125E |
| X-axis travel | mm | 1100 | 1400 | 2000 |
| Y-axis travel | mm | 950 | 950 | 1150 |
| Z-axis travel | mm | 900 | 900 | 1150 |
| Distance from nose of spindle to table surface | mm | 135- 1035 | 150-1050 | 350-1150 |
| Distance from spindle center to table top | mm | 135- 1085 | 100-1050 | 20-1170 |
| Rail type | mm | Linear Roller Slides (X, Y, Z) | Linear Roller Slides (X, Y, Z) | Linear Roller Slides (X, Y, Z) |
| Table size(X*Y) | mm² | 630*630 | 800*800 | 1250*1250 |
| Table weight | kg | 1200 | 2000 | 5000 |
| B-axis indexing (continuous indexing) | mm | 0.001 | 0.001 | 0.001 |
| T-slot size (width X distance X number of slots) | mm | 18*100*5 | 22*100*7 | 22*200*5 |
| Spindle speed | rpm | 40-6000 | 40-6000 | 40-6000 |
| Spindle taper | BBT#50(ISO50) | BBT#50 | BBT#50(ISO50) | |
| Number of spindle speed changes | Belt type | Belt type | Belt type | |
| Rapid feed rate (X/Y/Z/B) | m/min | 24/24/24/10rpm | 24/24/24/10rpm | 10/12/10/3rpm |
| Fastest cutting feed rate | mm/min | 8000 | 8000 | 8000 |
| Tool shank type | MAS403-BT50 | MAS403-BT50 | MAS403-BT50 | |
| Tool magazine capacity | 30 (40,60) | 30 (40) | 30 (40) | |
| Tool selection method | Automatic tool change | Automatic tool change | Automatic tool change | |
| Tool change time | sec | (T to T) 10.5 | (T to T) 10.5 | (T to T) 10.5 |
| Maximum tool diameter/neighboring empty diameter | mm | Ø110/Ø200 | Ø110/Ø200 | Ø110/Ø200 |
| Maximum tool length | mm | 350 | 350 | 350 |
| Max. tool weight | kg | 18 | 18 | 18 |
| Spindle motor (continuous/30 min) | kW | 15/18.5 | 15/18.5 | 15/18.5 |
| Servo motor | kW | 3.0/3.0/3.0/3.0 | 3.0/3.0/3.0/3.0 | 3.0/3.0/3.0/3.0 |
| Total power supply | KVA | 45 | 45 | 45 |
| Cutting fluid capacity | liters | 350 | 350 | 380 |
| Lubricant tank capacity | liters | 6 | 6 | 6 |
| Positioning accuracy JIS B6338 | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Positioning accuracy VDI/DGQ3441 | mm | 0.015 | 0.015 | 0.015 |
| Repeatable positioning accuracy JIS B6338 | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Repeat positioning accuracy VDI/DGQ3441 | mm | 0.01 | 0.01 | 0.01 |
| Controller | FANUC 0I-MF | FANUC 0I-MF | FANUC 0I-MF | |
| Machine weight | kg | 15000 | 17000 | 24000 |
| Machine height | mm | 3200 | 3200 | 3600 |
| Floor space (L*W) | mm² | 3762×5928 | 4102×6128 | 6400×5912 |
