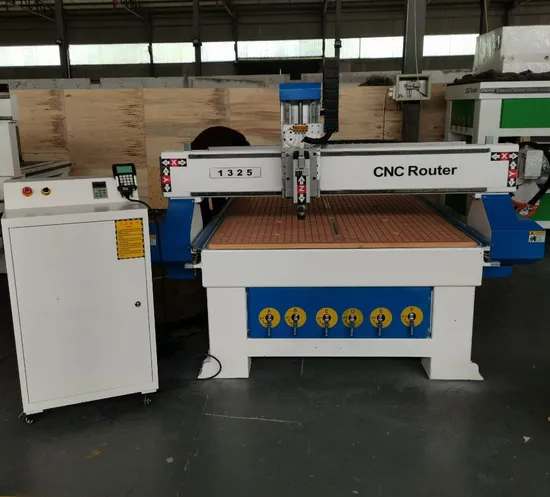

CE Certificate DSP/Mach3/Ncstudio System 3D CNC Router Machine with 5.5kw Powder 1325 PVC Foam Board Cutting for Furniture Industry

Product Description

CE Certificate DSP/MACH3/NCSTUDIO System CNC Router Machine with 5.5KW powder 1325 PVC foam board cutting for Furniture Industry
Product Parameters

Number	Description	Parameter
1	XYZ working area	1300*2500*200mm/300MM
2	Table size	1510*2500mm
3	XYZ travel positioning accuracy	±0.025mm
4	XYZ repositioning positioning accury	±0.025mm
5	Table surface	Vacuum table combined T-slot
6	gantry	steel
7	drive system X-Y axis	Rack actuation
8	drive system Z axis	Ball screw
9	Spindle power	7.5 KW
10	Max velocity	50m/min
11	Max working speed	25m/min
12	Spindle speed	0-24000rmp
13	work mode	Stepper motor
14	Working voltage	AC220V or 380V
15	Command language	G code
16	Interface	USB
17	Operating system	DSP
18	Flash memory	128
19	X-Y resolution	<0.025mm
20	Software environment	Wentai type3 artcam
21	Running environment	Temperature:0-45ºC
22	Paking size	3600*2250*1850mm
23	Net weight	1300 kg
24	Gross weight	1500 kg

Our Advantages
Performance Features:
1. Fast cutting milling speed:
machine with fast speed could be 40m/min
2. High accurate of engraving and milling:
repeat location precision could be 0.05mm
3. Tight strong machine structure:
Machine total weight 1000-1300kg with 6mm thickness steel tubes welding for structure
4. Dust collect system:
Machine with dust collector with dust pipw and dust brush to keep it working in the clean environment
5. Vacuum adsorb system:
4X8ft size vacuum table(or other size can be customized) with 8 zones ,also different working size can be customized as per customer needs.
6.Breakpoint specific memory:
keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages
7. Easy operation system:
DSP handle operation easy to learn and operate
8.Wholesale in the World support:
we can sell to all over the world no limited with our wholesale price
9. Servo system:
Machine is with Japan Yaskawa servo motor drivers 850w
10.Long time use :
The vacuum table cnc milling machine adopts an integral steel structure, and the bed body has undergone secondary aging treatment to ensure the motion accuracy and reliability of the whole machine. And the thickened pipe wall ensures stable operation of the equipment, long-term use without deformation, and long service life.
Application
Suitable material:
PMMA,PVC Sheet, ABS sheet, KT sheet, Timber ,Gemstone, Marble ,Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc.

Application:

.Woodworking Applications:

waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher, game machine cabinet, Ma-jiang Table, computer table and panel type funiture.

. Advertising Applications:

making advertising products made from Brand Board, Acrylic cutting, mould and some other materials processing.

. Mould Area:

copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola, sandstone, plastic board, PVC pipe, wood sheet etc.

Other Applications:

Art and craft fields, embossment, photo engraving and so on.
Detailed Photos
1. Strong machine table and frame, it insure the table don't sink
2. Original HIWIN20 square rail from TAIWAN, make sure machine working higher accurate
3. Original Leadshine DMA860H with long life time service
4. Vacuum table with T-SLOT combination, that is more convenient to fix materials two ways one vacuum and other for clamps
5. Automatic lubrication that can set different timing for oiling
6. High precision M2 grind rack
7. Big stable transpormer to offer power for drivers
8. Seperately Switches for different vacuum zones on table

Samples
Packaging & Shipping
Training and Use:
1. We will supply with the machine operation manual in English version for installing and
operation.
2.Customer can come to our factory training .
3.Our engineer also can go to customers' factory training.
Warranty and Service :
1. Our warranty is 2 years counting from the date when the Machine arrives at the port of
destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can't be solved by customers, our engineer can go to door to
help
3)Free training to make sure you can master the operation of machine,also we will send manual,instruction,teach video with machine together.
4)English vesion operation manual,popular and easy to understand and handle

Company Profile
Company Information
Jinan Rhino CNC Equipment co., LTD., founded in 2009, has been focused on the all kinds of cnc machine production like 5 axis CNC Router, 4 axis cnc router, woodworking cnc router, stone cnc router,metal mold cnc router,fiber laser cutting marking machine, co2 laser cutting machine,plamsa cutting machine etc, has more than 3000 clients, customers in more than 50 countries around the world. In the woodworking cnc machines, Rhino CNC has upgraded economic 5 axis cnc router and spindle swing 4 axis cnc router with quality perfect so that Rhino brand become the top brand of cnc machine industry in China and in the world also.

FAQ
Question 1: I'm interested in cnc router machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?

Question 2: What's the delivery cost and time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: What is the design software?

Answer: We give free Type3 and Artcam software,you can also use your own software,as long as it can transfer into G code .
Welcome to contact us if you have more requirements for above machine!
Also we can produce the cnc router according to your detail requirements!
