Composite Wind Turbine Cfrp Blade Lightening Strike Protection Grounding Structurelight Weight China Manufacturer Expanded Microgrid Copper Screen Mesh Foils

Product Description

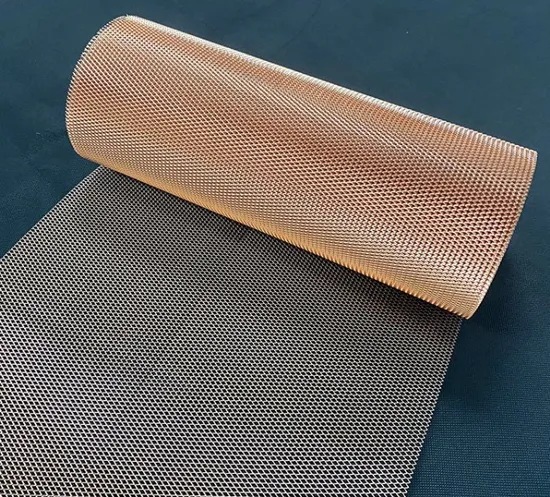

Precision expanded metal screen,also names diamond hole mesh,the process is using metal sheet by machine stamping and drawing .
Expanded metal mesh specification

Item	Size (mm)
Mesh thickness	0.04-5.0
Mesh hole	0.3x0.6,0.5x1.0,0.6x1.2,0.8x1.6,1x2,1.25x2.5,1.5x2,2x2.5,1.5x3,2x3,2x4,3x6,4x8,5x10,6x12,8x16,10x20,15x30, 20x40,30x60 etc

Expanded metal mesh material :stainless steel,aluminum,copper,silver,nickel,titanium,etc.
Expanded metal mesh can be used in many kinds of industries,such as aerospace,construction mesh,titanium anode,chemical industry,filter media,hydrogen making,speaker griller, current collector of battery, EMI/EMP shielding,wind energy etc.
Expanded copper mesh and Expanded aluminum mesh applied in aerospace main usage is :lightening strike protection in composite aircraft structure.
Expanded copper mesh and Expanded aluminum mesh applied in wind energy is surface protection and down conductors in wind blade construction for lightening strike.

SW Product code	3CU-100	4CU-125	8AL-125	10CU-125
Weight-LBS/SF(+10%) -GMS/SM(+10%)	0.040	0.086	0.065	0.167
	195	420	317	815
Original expanded thickness (+0.001") (+0.25mm)	0.003inch	0.004inch	0.008inch	0.010inch
	0.076mm	0.102mm	0.203mm	0.254mm
Long way of the diamond LWD (+5%)	0.100inch	0.125inch	0.125inch	0.125inch
	2.54mm	3.175mm	3.175mm	3.175mm
Open Area (+5%)	70%	53%	42%	64%

Micro copper mesh advantage: good conductivity and heat transfer performance, non-magnetic, corrosion resistance,wear resistance,strong sound insulation,signal shielding etc.
Micro mesh package:water-proof paper, air bubble film,carton.Anping County Shanwei Metal Products Co.,Ltd , expanded micro mesh professional manufacturer.
