Accessories Continuous Hooks Catenary Overhead Rail/Conveyor Shot Blasting Machine

Product Description

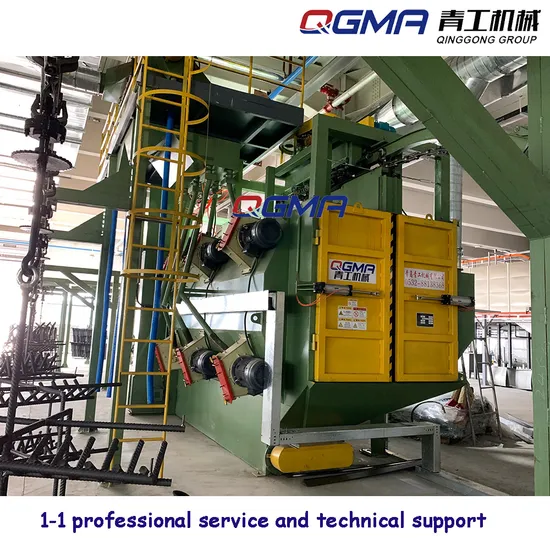

Accessories Continuous Hooks Catenary Overhead Rail/Conveyor Shot Blasting Machine Product Description Q38 series overhead rail Shot Blasting Machine uses the method of multistep fixed-point rotation blasting and cleaning, removing the sand and oxide skin on the casting surface, to reappear metal color. It is mainly used in car accessories and bolster, side frame, coupling, and frame of trail hook vehicle parts, at the same time also can clean the casting and small batch workpiece with similar size.
☆Workpiece
Casting, forging, weldment, wheel hub, bicycle frame, motor shell, machinery parts, cylinder and more parts for various industries: aerospace, automotive, foundry, forging, stamping, ship-building, steel construction, plastic process, chain, etc.
☆Transportation system
Overhead closed loop(endless circular) monorail system, with multiple lifting hooks, optional rotation motor, can blast workpiece by batches
☆Loading capacity
5-1000kg
☆Blast turbine
Number: 4-16
Power: 7.5-30 kw
☆Intelligent abrasive dosing system:
Service time max 20% longer, energy saved max 30%. ☆Dust collector
Settling chamber + cartridge-type dust collector
Cartridge filter service time: 5 years
☆Features
Remove scale, rust and welding slag, increase adhesion of coating.
Rust removal grade: SA2.5-3.0.
Product Parameters

Machine type	QG382C	QG383C	QG384C	QG583	QG5810
Productivity (hook/h) ( /)	35-55	38-50	60-120	30-60	50
Hooks running speed(m/min)	0.35-3	0.35-3	0.35-3	0.35-3	0.35-3
Max. Singe hook load(kg) ()	240	300	400	300	1000
Abrasive flow rate(kg/min) (/)	4*240	4*250	4*250	4*250	6*360
Max. workpiece Dia. x Height (mm)	600*1600	700*1600	800*2000	1000*1500	750*2400
No. of wheels	4	4	4	4	6
Ventilation quantity (m3/h) (/)	8000	10480	14500	18000	25000
Foundation pit	Yes	Yes	Yes	Yes	Yes

Detailed Photos Packaging & Shipping
After Sales Service in case of some issues with the machine like some corrective actions, you can contact us by the 24 hours after-sales service telephone, firstly we will provide remote online assistance to help, also our engineer can go to your factory and help you if you have any problems cannot be solved by yourself.
Company Profile With 48 years experience of innovating and producing, QINGGONG machinery is a professional manufacturer of wheel blast/air blast machines. In 1975, predecessors started by producing farm tools for China's rising farming markets. In 1985 first shot blasting machine was produced. In 2010 QingGong Machinery is privatized. Qinggong machinery have a R&D team with 30 years experience, 50 workers and a factory covering an area of 30,000 m2. Untill now, Qinggong machinery have produced 6000+ sets of various kinds of wheel blast, air blast machines for customers from more than 70 different countries and some major factories in China, like LongGong, TISCO, CRRC, etc. TREATING SURFACE, PEENING FUTURE has been the spirit of Qinggong machinery for decades. With our determined and responsible attitude, we have the confidence of providing the better surface treatment solutions for your industry.
Certifications
FAQ
Q:How to choose balst machine type?
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 year for whole machine, 10 years for blasting chamber
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
