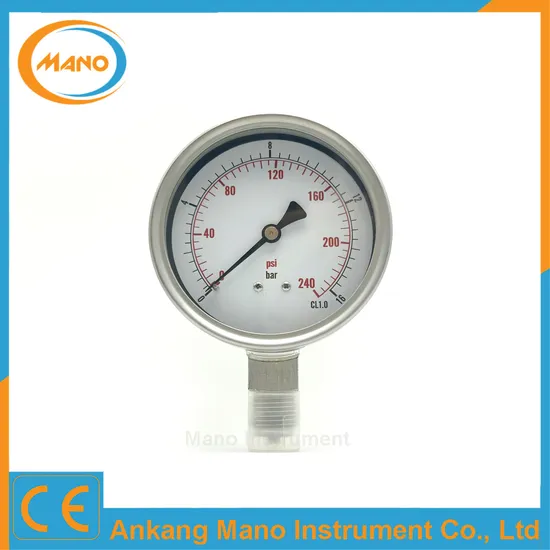

High Quality All Stainless Steel Pressure Gauge -IP65 Manometer for Industry

Product Description

Product Description Applications
1. Measure the pressure of medium in technological process which has higher requirements of corrosion-proof and anti-vibration.
2. Process industry: widely used in oil industry, chemical/petrol-chemical industry, chemical fiber industry, metallurgical industry etc.
Features
1. It has high measurement accuracy and long-term stability.
2. Excellent load-cycle stability and shock resistance.
Description

Model	Stainless steel pressure gauge
Nominal size	40mm, 50mm, 63mm, 100mm 150mm, 250mm
Accuracy class	NS40, 50, 63: 2.5%; or NS63, 100 150: 1.5% or NS100, 150:1.0%
Scale ranges	From -1...0 to 0...600 bar or other equivalent units
Pressure Unit	Mpa psi bar kg/cm2 Kpa etc.
Dial	Aluminum, white
Pointer	Aluminum, black
Case	Stainless steel 304 (316 or 316L for optional)
Ring	Bayonet ring, stainless steel for 63mm, 100mm, 150mm Crimped ring, stainless steel for 40mm, 50mm, 63mm, 100mm
Movement	Stainless steel 304 (316 or 316L for optional)
Window	Safety glass
Protection degree	IP65
Thread size	NS 40 50: M12*1.5 G1/8 NPT1/8 etc. NS 63: M14*1.5 G1/4 NPT1/4 etc. NS100 150: M20*1.5 G1/2 NPT1/2 etc.
Bourdon tube	Stainless steel 316 (304 or 316L for optional) C-type or helical type
Process connection	Stainless steel 304; (316 or 316L for optional) Lower mount (radial) or back mount (axial) or with flange
Filling liquid	Dry or Glycerin (Silicone for optional)
Permissible temperature	Ambient: -40 ... +70 °C without liquid filling -20 ... +60 °C gauges with glycerin filling Medium: +200 °C maximum without liquid filling +100 °C maximum with liquid filling
Temperature influence	When temperature of the measuring system deviates from reference temperature (+20ºC) max error ±0.4ºC /10K of full-scale value.

Detailed Photos
Company Profile
FAQ Q:Do you have MOQ?
A:We don't have MOQ
Q:Can you supply OEM, ODM services?
A:Yes, we can provide OEM for our products, and for some of the products, we provide ODM.
Q:Can we check and confirm the dial plate before production?
A:Yes, for customized products, we can send you the dial plate pic for your checking and confirming before production.
Q:What is your packing for export products?
A:(1)For pressure gauge, thermometer, we usually use neutral box with neutral carton.
(2)For digital pressure gauge, we usually use plastic seal and box, with neutral carton.
(3)For pressure calibrator, comparator pump, we usually use box with carton or wooden box.
Q:The quality of your products.
A:Our products are strictly following international measurement and calibration standards. And all products are with 100% inspected by skilled workers.
Q:What is our payment terms?
A:For sample or trial orders, we can use West Union and PayPal, TT etc. For large orders, we accept TT, LC or other payment terms after negotiation.
Q:What is your shipping way?
A:Sea transport, train transport, air transport or express like DHL, UPS, TNT, FEDEX etc. are all available for us. We will choose the best way according products and your requirements.
Q:Can you provide us sample? Is it for free?
A:Yes, we are very willing to provide you samples. For products lower than 10USD, we can send the free sample for you.
Q:How long is your product warranty?
A:You can enjoy free warranty service for products withinone year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.
Options
"HOW TO ORDER" SEQUENCE
Model /Nominal size / Scale range / Thread size / Process connection / Options
