Shampoo Liquid Soaps Bottles Jerry Cans Blow Molding Machine

Product Description

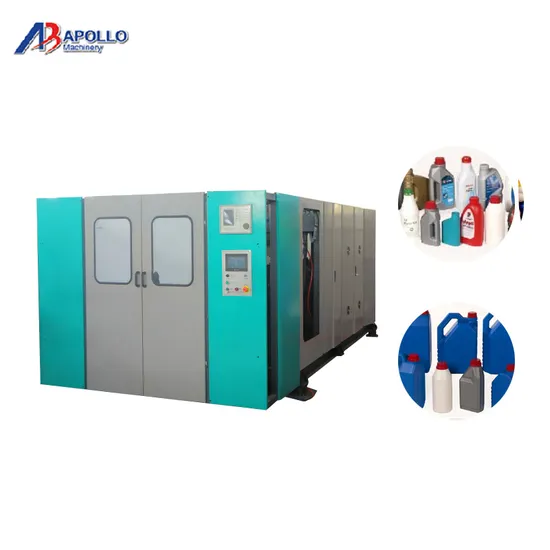

1~5L HDPE detergents shampoo liquid soaps bottles jerry cans blow molding machine(ABLB65II)
Plastic blow moulding machine:
ABLB65II full automatic blow molding machine produce bottles from 1 to 5L. It is suitable for PP, PE, HDPE, PET, ABS, PVC and so on. Precision design of heater ensures even heating for getting perfect plastic products. Double station design is suitable for mass production to meet your production request in big quantity.
Main technical parameters:
Features: (ABLB65II)
Max. Product volume: 5 liters
Dry cycle: 800PC/h
Screw diameter: 65mm
Screw L/D ratio: 24 L/D
Screw drive power: 18 KW
Screw heating capacity: 5KW
No. Of heating zone: 3/4 zones
Output of HDPE: 80 KG/H
Oil pump drive power: 7.5KW
Clamping force: 65 KN
Max. Size of mold: 148-450mm
Mold stroke: 400X450mm
Max. Die diameter: 160mm
Blow pressure: 0.6mpa
Air volume: 0.8M³ /MIN
Cooling water pressure: 0.3mpa
Water consumption: 80 L/MIN.
The main component of the machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN REGION MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN REGION HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC
