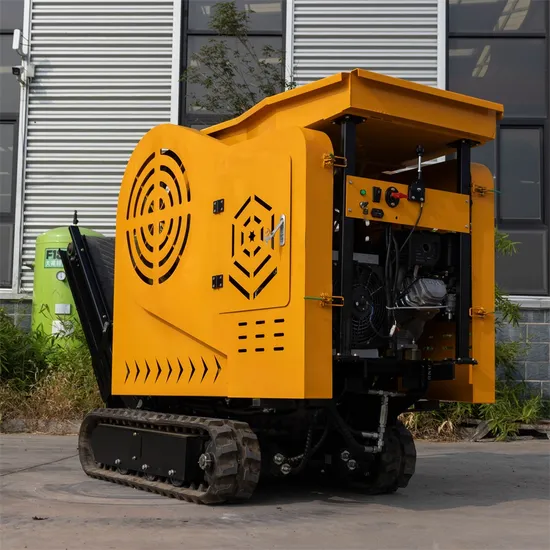

Mobile Crawler Jaw Concrete Crusher Mini Stone Crusher Machinery
Basic Info.
Model NO.
HT430
Drive
Hydraulic
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
Intermediate Crusher
Finished Surface
Thread Process
Certification
CE, ISO
Condition
New
Color
Yellow
Name
Crawler Jaw Crusher
Engine
Rato/Briggs&Stratton Engine/Koop
Power
13.5HP
Feed Port
200X 370mm
Maximum Feed Size
200mm
Crawler Chassis Size
1220X770mm
Traveling Speed
0-3 Km/H
Track Model
180X 72X 37mm
Silo Volume
0.5cbm
Stacking Height
900-1200mm
Feeding Conveyor
1450X400mm
Jaw Plate Adjustment Range
25mm
Working Size
2950X770X1630mm
Transport Size
2100X 770X1760mm
Inner Width of Vertical Board
410mm
Transport Package
Wooden Box
Specification
4cmb
Trademark
logo
Origin
China
HS Code
8429521200
Production Capacity
10000sets/Year
Packaging & Delivery
Package Size
225.00cm * 107.00cm * 189.00cm
Package Gross Weight
2000.000kg
Product Description
Mobile Concrete Crusher Small Portable Jaw Crusher Stone Crushing Machine ConcreteTechnical Parameter
| HT430 Mini Crawler Mobile Jaw Crusher | |||
| Overall dimension(mm): | 3200×1000×1600 | ||
| The vertical board inside width(mm) | 380 | ||
| Transport size(mm): | 2150×1000×1750 | ||
| Total outside width of the protective cover(mm): | 960 | ||
| Track size(mm): | 180×72×41 | ||
| Thrust wheel diameter(mm): | 126 | ||
| Thrust wheel quantity(group): | 6 | ||
| Feeding oening size(mm): | 220×350 | ||
| Max. Feeding openingsize(mm): | 200 | ||
| Hopper capacity(m3): | 0.25 | ||
| Stacking height(mm): | 700-1150 | ||
| Feeding conveyor(mm): | 1500×500 | ||
| Gravel range(mm): | diameter15-50 | ||
| Walking speed(km/h): | 0-3 | ||
| Track material: | Rubber | ||
| Production capacity(T/h ): | 2T-10T/h | ||
| Belt width(mm): | 400 | ||
| Operation | |||
| Engine: | Rato | ||
| Operation type: | Manual hydraulic valve | ||
| Walking type: | Crawler | ||
| Walking motor model: | 6K-395 | ||
| Continuous torque(N.m): | 850 | ||
| Hydraulic pump model: | PGP5108 | ||
| Conveyor motor model: | BMER-300 | ||
| Conveyor lifting method: | Manual operation and hydraulic lifting | ||
| Jaw crusher lubrication method: | Grease | ||
Mobile Concrete Crusher Small Portable Jaw Crusher Stone Crushing Machine Concret
