Rubber Sheet Roll Slitter Machine

Product Description

Rubber Sheet Roll Slitter Machine
Product introduction
Name: Rubber Roll Slitter
Model: FTJ1000 Fixed blades
Descriptions
Rubber Sheet Roll Slitter Machine with speed controller with inverter, Users can adjust the feeding and discharging speed according to the production situation. The slitting machine with fixed blades, that means the distance of slitting strips width is regular, cannot adjustable.
Technical parameters

Working width	Cutter shaft	Motor power	Max. Cutting thickness	Control mode
1000mm	φ45mm	3.0KW Slow down a whole	25mm	Frequency control
Blade size	Blade material	Slitting width	Cutting speed	Cutting tool structure
OD130mm Thickness 2mm	High speed steel 9255	Fixed size	Adjustable	Fixed type

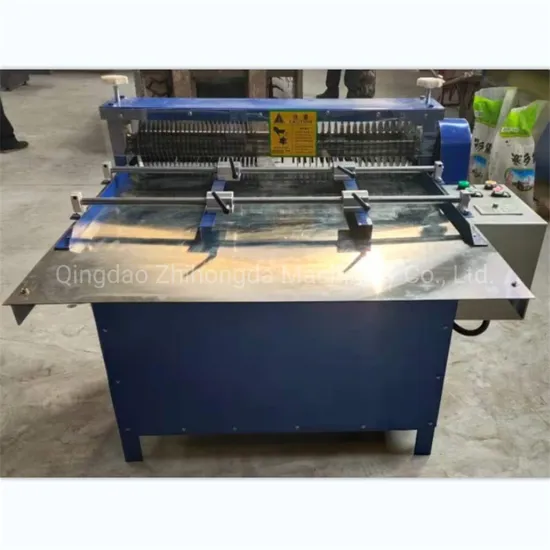

Product display
Blades material is used high speed steel 9255. the cut is neat and beautiful,high precision; fine grinding knife shaft to ensure very good cutting effect
Package&Delivery
Standard export wooden cases
Features:
Our rubber slitters have 2 structures, one is adjustable blades, another is fixed blades.
Adjustable blades can cut the mint. width of strips 20mm.
If you want to cut less than 20mm, you should adopt the fixed type.
More information, please contact us and discuss further.
Quotation needs to know:
If you are interested in our rubber slitting machines, please kindly inform your parameters as following:
1. What is the width of your sheet? Thickness?
2. What is the slitting strip width? Do the blades need to be adjustable or fixed? Blades number?
3. What is the raw material of your sheet? What is material hardness?
Then we can provide you with the exact price.
It is my pleasure to service for you, waiting for your inquiry.
Thanks for your time and attention!
