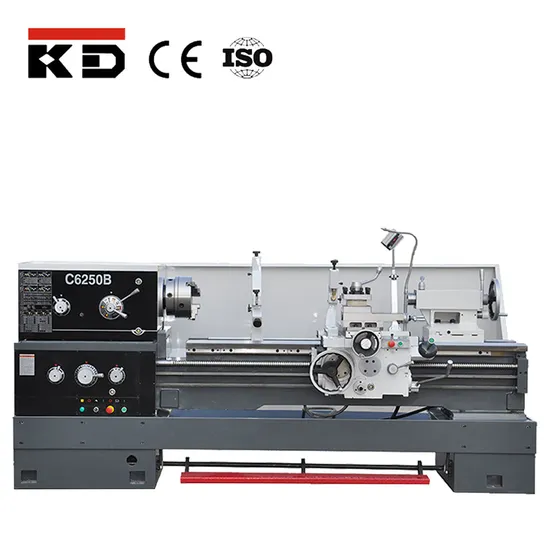

Gear Head Gap Conventional Lathe C6250b/1500
| US$3,000.00-50,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
C6250B/1500
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Bed Width
405mm
Spindle Bore
80mm
Max Swing Over Bed
500-660mm
Max. Speed
1600
Speed Step
24
Motor Power
7.5kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
1200 Sets/ Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | | |
| CAPACITY | C6250B | C6266B |
| Max.swing over bed | Ф500mm | Ф660mm |
| Max.swing over carriage | Ф260mm | Ф420mm |
| Max. swing over gap | Ф710mm | Ф870mm |
| Distance between centers | 1000/1500/2000/3000mm | |
| Bed width | 405mm | |
| SPINDLE | | |
| Spindle nose | D8 | |
| Spindle bore | Ф80mm | |
| Taper bore of spindle | M.T.NO.7 | |
| Steps of spindle speed | 24 | |
| Range of spindle speed | 9~1600rpm | |
| FEED | | |
| Range of longitudinal feeds | 0.063~6.43 (0.0023″~0.2392″)mm | |
| Range of cross feeds | 0.027~2.73(0.0010″~0.1016″)mm | |
| RAPID TRAVEL | | |
| Longitudinal | 4500mm/min | |
| Cross | 1900mm/min | |
| THREAD RANGE/ NUMBER | | |
| Metric pitch threads | 1~224mm/ 46 | |
| Whit-worth threads | 28~1/8 TPI/ 26 | |
| Module threads | 0.5~112mm/ 42 | |
| D.P.Threads | 56~1/4 DP/ 45 | |
| TAILSTOCK SLEEVE | | |
| Taper bore | M.T.NO.5 | |
| Max travel | 150(5~29/32″)mm | |
| External diameter | Ф75(2~61/64″)mm | |
| OTHERS | | |
| Size of tool shank | 25×25mm | |
| Max travel of cross slide | 360mm | |
| Max travel of top slide | 145mm | |
| Main motor power | 7.5kw (10HP) | |
| Overall dimensions(L×W×H) | (2500/3000/3500/4500)×900×1259mm | |
| Net weight | 2750/3000/3250/3600kg | 3000/3200/3400/3900kg |
