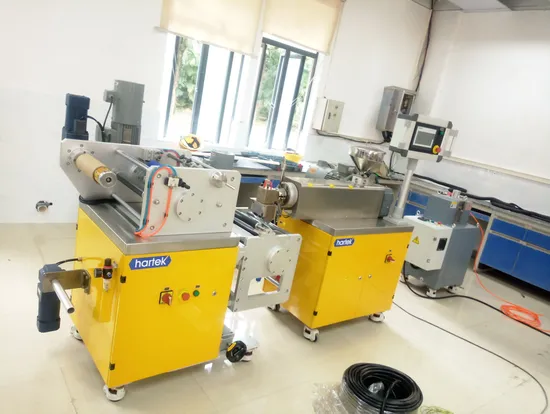

Laboratory Mini Plastic Cast Film Machine TPU/Pet/PE Casting Film Extruder

Product Description

Product Performance of Small Lab Cast Film Extrusion Line :
* SIEMENS touching screen PLC control system,highly intelligent, easy to operate
* Double protection of machinery and electrical appliances
* Equipped with magnetic powder clutch to achieve constant tension winding
* Adjusting clearance between casting roller and casting mould head by lifting mechanism
* Emergency stop device and other safety devices to ensure the safety of the operator.
* With film analyzer, can detect gel, black spot, fiber, fold, hole and other defects in film without omission in real time
Application Scope of Small Lab Cast Film Extrusion Line :
* Testing and evaluation of the casting properties of polymer materials
* New material formula development
* Optimization of production technology
* Production quality control
* Detection and evaluation of fish eye, crystal point and other defects
Technical Parameters

Model	HTCS-20	HTCS-25	HTCS-30
Screw Diameter	20mm	25mm	30mm
L/D Ratio	28:1(optional)	28:1(optional)	28:1(optional)
Motor Power	3kw	4kw	5.5kw
Max. Rotating Speed	120rpm	120rpm	120rpm
Max. Temperature	350ºC (optional450ºC)	350ºC (optional 450ºC)	350ºC (optional 450ºC)
Temperature Control Accuracy	±1ºC	±1ºC	±1ºC
Melt Pressure Measurement Range	0-35Mpa	0-35Mpa	0~35Mpa
Casting Roll Speed	0.5~8m/min	0.5-8m/min	0.5~8m/min
Haul-off Speed	0.5~8m/min	0.5~8m/min	0.5~8m/min
Output	0.5-3kg/h	0.5~5kg/h	0.5~7kg/h
Weight	801kg	850kg	930kg
Dimension	3059×1115×1660mm	3199×1115×1660mm	3259x1115×1660mm

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.
