Hydraulic Ruber Hose Crimping Machine Steel Pipe Press Electrical Insulator Swaging Machine

Product Description

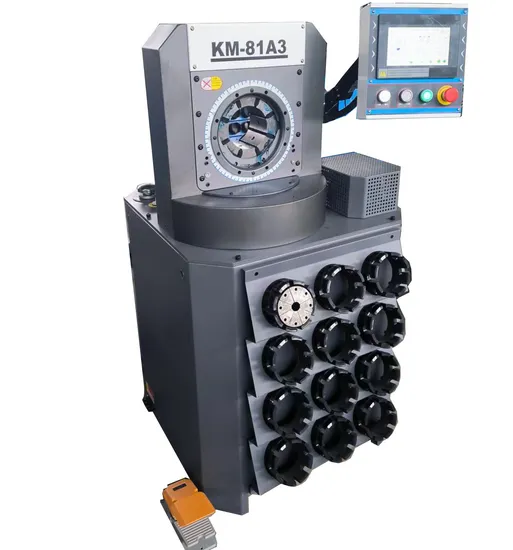

Technical specification of hose crimping machine KM-81A3

Model No.,	KM-81A3
Crimping range	1/4"-2"4SP
Accuracy	0.01mm
Max opening without dies	ø155mm
Max die opening	≥60mm
Motor & voltage	380V/4kW
Cycle time	1s/8.9s
Foot pedal	included
Quick change tool	included
Noise level	≤75dB
Machine weight	540kg
Machine Dimension	790*580*950(mm)

PRODUCT OVERVIEW

PRODUCT DETAILS Particularly narrow crimping
head (13cm) to crimp hose ends with large flanges or 90°fittings Protractor for orientation fittings Movable die shelf, convenient to store and change dies Variable displacement piston pump
provides strong force but low noise Various control panels for your choice Fine polished high-speed steel dies
Applications Of KM-81C Superthin Hydraulic HoseCrimping Machine
1).SAE 100 R 13 2" 4-LAYER steel wire hose.
2).EN856 2" 4SP hose.
3).Steel tube or pipe.
4).Big flange and special elbow fittings and tube
5).Electrical insulator
Hydraulic Hose Crimping Machine why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fittings and hoses crimped by kangmai machine never leak or never broken. The reasons are as below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimp high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging not cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.
