High-Speed Stainless Steel Copper Wire Weaving Braiding Machine for Flexible Metal Hose Rubber Hose Industrial Hose Hydraulic Hose High Pressure Hose
| US$8,800.00-150,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Comflex
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Product Name
Hose Braider
Usage
Wire, Rope Wire, Prestressed Steel Wire
Type
Horizontal Metal Wire Braiding Machine
Metal Material
Stainless Steel
Outlet Diameter
6.5-24mm
Max.Inlet Wire Dia.
5.5mm
Block Dia.
350mm
Max. Number of Block
11
Braiding Diameter
4-500mm
Wire Diameter
0.3-0.8mm
Number of Carrier
16-128
Material of Wires
Stainless Steel, Galvanized Carbon Steel, Copper W
Transport Package
Standard Cartons
Specification
SGS, ISO9001
Trademark
LONGTERM
Origin
China
HS Code
73072900
Production Capacity
2900PCS/Year
Product Description

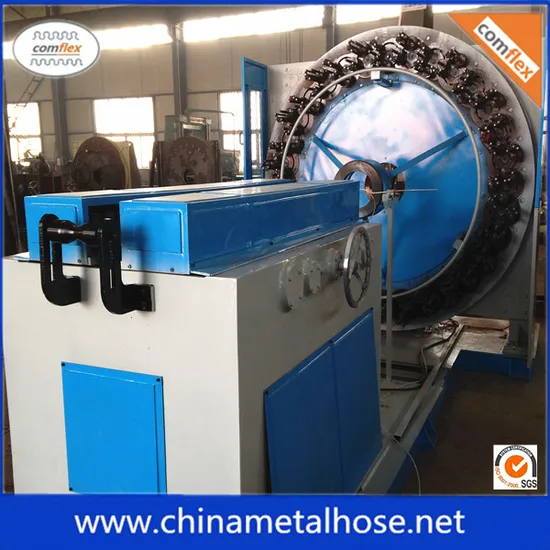

High-Speed Stainless Steel Copper Wire Weaving Braiding Machine for Flexible Metal Hose Rubber Hose Industrial Hose Hydraulic Hose High Pressure HosePictures of braiding machine:
Machine parameters:
We manufacture all kinds of horizontal wire braiding machinery in different sizes, they are 16, 20, 24, 36, 48, 64, 72, 96,112,128 spindles.
The wire braiding machines we can make as follows:
Wire diameter: 0.3mm to 0.8mm
No. Of spindles: 16 to 128 carrier braiding machine
ID of the braids: 4mm to 500mm
Material of wires: Stainless steel, galvanized carbon steel, copper wire
Application: Cable manufacturing, metal and rubber hose manufacturing industry
Technical data sheet:
| Steel Wire Braiding Machine |
| The wire braiding machines we can make as follows: Wire diameter:0.3mm to 0.8mm No.of spindles:16 to 112 spindle braiding machine ID of the braids:4mm to 600mm Material of wires:stainless steel,galvanized carbon steel, copper wire *For details please download the catalogue in PDF format. |
| Description | Braiding Diameter (mm) | Carrier Rotation Speed (r/min) | Braiding Pitch (mm) | Braiding angle | No. of carrier |
| 16-carrier wire braiding machine | 4-10 | 24.80 | 4-22 | 54°44" | 16 |
| 20-carrier wire braiding machine | 6-16 | 19.80 | 13-29 | 54°44" | 20 |
| 24-carrier wire braiding machine | 10--31 | 14.25 | 22-69 | 54°44" | 24 |
| 36-carrier wire braiding machine | 15--45 | 10.00 | 33-100 | 54°44" | 36 |
| 48-carrier wire braiding machine | 30--75 | 7.25 | 66-166 | 54°44" | 48 |
| 64-carrier wire braiding machine | 51-110 | 4.56 | 67-240 | 54°44" | 64 |
| 72-carrier wire braiding machine | 80-150 | 4.25 | 170-330 | 54°44" | 72 |
| 96-carrier wire braiding machine | 150-400 | 2.75 | 240-750 | 54°44" | 96 |
| 128-carrier wire braiding machine | 180-500 | 2.09 | 500-1300 | 54°44" | 128 |
Package And Delivery:
FAQ
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
