Low Price Automatic Plastic Pet Bottle Blow Molding Making Machine with New Design

Low Price Automatic Plastic Pet Bottle Blow Molding Making Machine with New Design

US$5,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
LFD-2
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Capacity
1000bph
Material
Stainless Steel 304
Advantages
Low Energy Consumption
Cavity
2-Cavity
PLC
Mitisubishi
After-Sales Service
Online Support, Video Technical Support
Applicable Industry
Food & Beverage Factory
Transport Package
Wood Case
Specification
by order
Trademark
LONGSN
Origin
Zhangjiagang China
HS Code
8477209000
Production Capacity
20sets/Month

Product Description

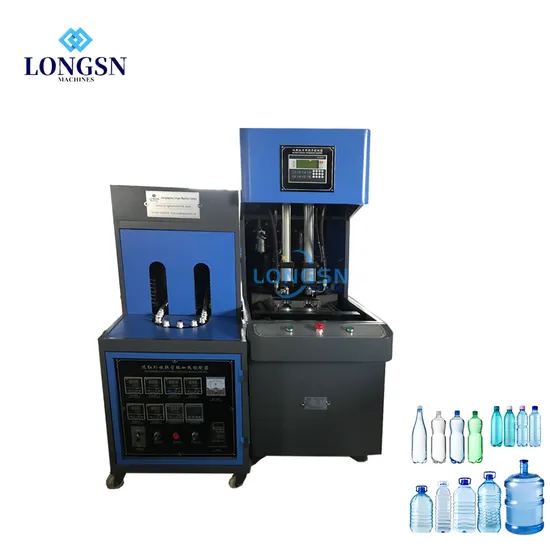

Low price automatic plastic pet bottle blow molding making machine with new design This Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.
1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to blow large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto maode.
6,Wide-mouth jar and hot-fill bottles can also be made.
Specification:
1.Type:Semi Automatic
2.Capacity:1000-2000BPH
3.Suitable bottle size:0.2L-2L
Technical parameter:
TYPE ITEM MEASUREMENT Combined type Standard type
END PRODUCT Material / PET/PP/PE/PC PET/PP/PE/PC
Volume L 0.05-2.5(2-cavity)
3-6(1-cavity)
0.05-2.5 (2-cavity)
3-6 (1-cavity)
Theoretical output Pcs/h 0.05-2.5L/1700
3-6L/800
0.05-2.5L/850
3-6L/400
Max.length mm 360 360
max.diameter mm 180 180
MOULD PLATE Max.mould plate
dimension(L×H)
mm 420×500 420×500
Max.mould thickness mm 160-240 160-240
Clamping force KN 90 90
Mould opening stroke (adjustable) mm 200 200
AUXILARY High pressure
Compressor M3/Mpa
KW >=0.70/3.0×1set 22 >=0.7/3.0×2sets 22
Precision air filters M3/Mpa >=1.0/3.0×2pcs >=1.0/3.0×2pcs
MAIN MACHINE ELECTRICITY Power KW 12 12
Voltae/Frequency V/HZ 220-380/50-60
MACHINE SIZE
AND WEIGHT
Main body dimension(L×W×H) M 1.45×0.6×1.75 1.45×0.6×1.75
Main body weight T 0.6 0.6
Conveyor dimension(L*W*H) M 1.40×0.62×1.25 1.40×0.62×1.25
Conveyor weight T 0.22 0.22
SAFTY Auto-emergency alarm SAFETY INTER-LOCKING DEVICE

Packaging & Shipping:
Our service: Before the order:
We will make detailed solution for you based on your requirments.
We will send you videos of our products to know more about our machines.
If you are willing to visit our factory,we will pick you up at a nearby airport/station
After the order:
We will start to produce machines and update the progress.
Our engineer will draw the layout for you.
After-sales service:
Arrange our engineer to your factory to install machines if you need,train your employee until they can operate machines well.
Provide you 2 years warranty with spare parts 2 year free.
24 hours for engineer response (all services part 5days in customer hand by Intl' courier)
FAQ:
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
