Battery Hydraulic Portable Trailerc Truck Mounted Diesel Stationary Mounted Small Concrete Conveying Pump Transfer Gear Piston Pump

Product Description

Hot Sales

Product Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
Operation of Concrete Pump
(1) The particle size of sand and gravel, the grade of cement and the mixing ratio should meet the requirements of the mechanical performance of the pump according to the requirements of the factory manual.
(2) The parking brake and locking brake of the pumping equipment should be used at the same time, the tires should be wedged tightly, the water supply should be normal, the water tank should be filled with clean water, there should be no debris in the hopper, and each lubrication point should be lubricated normally.
(3) All bolts of pumping equipment should be tightened, pipe joints should be tightened and sealed, and protective devices should be complete and reliable.
(4) At the beginning of each part of the operation, the adjustment handle, handwheel, control rod, cock, etc. should be in the correct position. The hydraulic system should be normal and leak-free.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

Maximum Theoretical Concrete Delivery Volume	15m³/h
Maximum Pumping Concrete Pressure	10MPa
Distribution Valve Form	S-pipe valve
Concrete Conveying Cylinder Bore*Stroke	Φ140*650mm
Outlet Diameter	Φ100mm
Rated Power	30.1KW
Rated Speed	1280r/min
Hydraulic Circuit Form	open circuit
Pumping Xiyong Oil Pressure	18MPa
Oil Pressure Of Stirring System	8MPa
Hydraulic Tank Volume	200L
Maximum Conveying Vertical Distance	120m
Maximum Conveying Horizontal Distance	250m
Maximum Particles Allowed	30mm
Dimensions L*W/*H	3400*1100*1700mm
Total Mass	1500KG

Detailed Photos

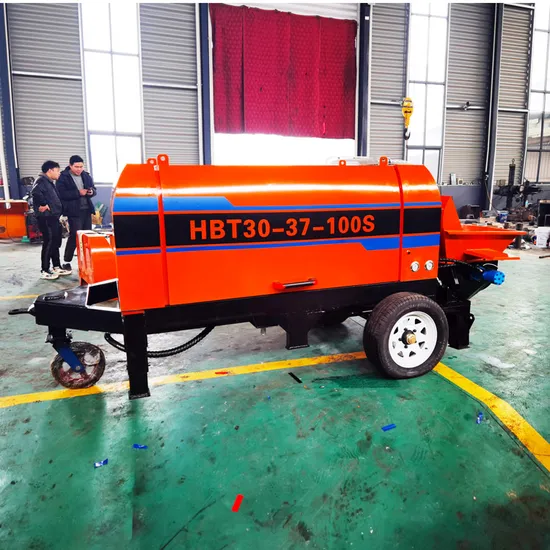

Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
