Laboratory Carding Machine Used To Disentangle Clean And Intermix Fibers With Two Rollers Feeding

Product Description

Product Description
Product Description

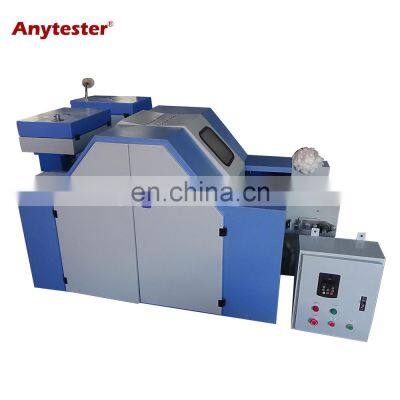

AT202 Laboratory Carding Machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
Detailed Images

Model	AT202
Feeding width	400mm
Working width	360mm
Cylinder diameter	Φ450mm
Doffer diameter	Φ220mm
Licker-in diameter	Φ165mm
Working roll diameter	Φ110mm
Wipe roll diameter	Φ90mm
Speed	Adjustable (Frequency converter control)
Max. fiber length	about 100mm
Villus bucket power	1.5KW
Output capacity	5~10kg/h
Maine machine power	AC220V/380V, 50/60Hz, 2.2KW
Dimension	1350mm*950mm*900mm (main machine)
	900mm*900mm*1200mm (villus bucket)
Weight	Approx. 800kg

★ It is driven by a 2.2kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.
★ With full-closed protective cover.
★ Two rollers feeding.
★ Can be used for wool fiber or chemical fibers.
★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web
★ It can produce web or sliver according to customer's selection.
★ Imported frequency converter control, high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
Packing & Delivery

Packaging
Size(cm)	1350mm*950mm*900mm
Weight	Approx. 800kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
