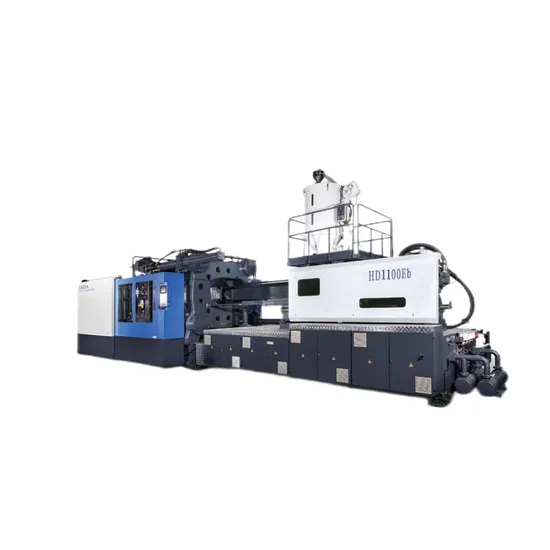

Haida HD1100eb Two-Platen Series Injection Molding Machine

Product Description

Product Description
HDEb Two-Platen Series:
>>>The new two-platen type clamping structure inherits the mature and reliable fixed mode of the traditional
three-board machine pull rod, greatly prolonges the life of the pull rod, and completely avoids the fatal defect
that most of the two-board machine pull rod is easy to break in the market.

>>>Elastic box formwork design, high parallelism, greatly ensure that the four pull rod stress uniform. The
movable formwork is supported by high rigid sliding feet, and compensable adjustment is provided. It can be
adjusted automatically according to the weight of the die to ensure stable support.

>>>The operation control of opening and closing mode and clamping mode is simple and reasonable. The
hydraulic mechanical structure is used to realize the synchronous lock of four tie rods with high efficiency.
The measurement adopts non-contact digital displacement sensor, anti-interference, precision 0.001%/F.S
(F.S measurement stroke), precise position control.

>>>Equipped with world-class brand hydraulic components and electric control equipment, smooth and reliable
operation, greatly improving efficiency while reducing calorific control.
_____________________________________________________________________________________________________________________
Basic Information:

Number Item

HD1100Eb

Category

HDEb Series

OEM

Available

Warranty

1 Year

Factory

Yes

Model NO	HD1100Eb		Computerized	Computerized
Certification	CE, ISO9001:2008		Plastic Processed	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLD
Style	Horizontal		Packaging Details	wooden pallet
Plastic Type	Thermoplastic		Machine Type	Hybrid(Eletric for injection parts,Hydraulic for clamping parts)
Condition	New		Energy Saving	Servo Energy Saving
Brand Name	Haida		Production Capacity	100 Set/Sets per Month
After-sales Service Provided	Engineers available to service machinery overseas		Warranty of core components	1 year
Place of Origin	Zhejiang,Ningbo,China		Local Service Location	Viet Nam, Brazil, Thailand, South Africa, Uzbekistan

Detailed Photos
INJECTION SYSTEM&PLC SYSTEM:
________________________________________________________________________________________________________________________________________
CLAMPING SYSTEM:

New Two-Platen Structure
1, The integral clamping piston replaces the Harff locking mechanism and the traditional clamping cylinder structure. A large number of parts are reduced and moving parts are minimized. The reliability and service life are greatly improved.
2, A holding cylinder through 3 connecting rods driven by 4 mode-locked piston synchronous action, holding brake stability, quiet, long life. The gate position is double checked and the Factor of safety is high.
3, Tie Rod Head Plate fixed, upper tie rod two plate copper sleeve support, lower tie rod support plate support, lower tie rod and do two plate guide, Tie Rod no suspension, no droop, no sloshing. The guide span of the second plate is large and the guide rigidity is strong. Fast and stable opening and closing die for two plates.
4, Tie Rod Nut and die-locking piston mount design, protect tie rod thread, improve tie rod life. Pull Rod life-cycle design, machine non-stop pull rod.
5, high rigidity shuttering body. Make sure that the second plate opens and closes the die quickly and smoothly.
6, the clamping cylinder can be disassembled as a whole, which is easier to maintain.


Product Parameters

ITEM-HD1100Eb		UNIT	DATA
Injection Unit	Screw Diameter	mm	110	120	130
	Screw L/D Ratio	L/D	20	20.2	18.6
	Injection Volume	cm3	4942	5881	6902
	Shot Weight(PP)	g	4497	5352	6281
	Injection Pressure	Mpa	184	155	132
Clamping Unit	Clamping Force	KN	11000
	Opening Stroke	mm	1900/1200
	Mould Thickness(Min-Max)	mm	600-1300
	Space Between Tie-Bars	mm	1260x1100
	Ejector Force	KN	280
	Ejector Stroke	mm	350
	Max.Daylight	mm	2500
General	Pump Pressure	Mpa	16
	Motor Power	KW	55x2+18.5
	Heater	KW	58
	Machine Dimension	m	10.4x3.3x3.5
	Machine Weight	T	51
	Mould Orientation Ring Diameter	mm	Φ250
	Nozzle Radius	mm	SR20

Application
APPLICATION FIELD:


HAIDA HDEb Series Typical product such as below:
>>>Large logistics turnover boxes,pallets,erc
>>>Garbage classification bucket
>>>Refrigerator,washing machine and other household appliances plastic accessories
>>>Car bumper,car interior panel,etc
