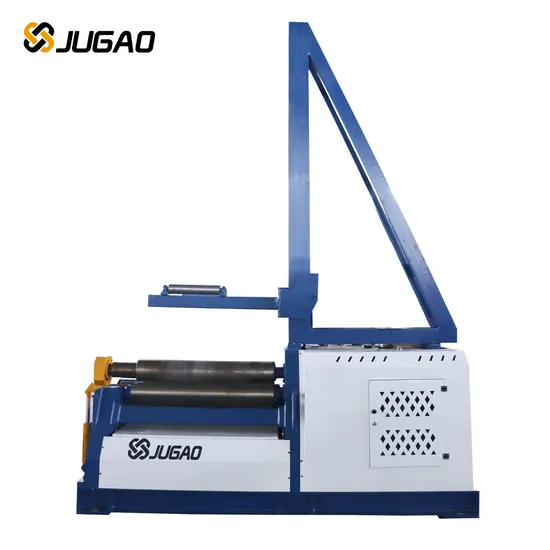

Jugao 4 Rolls Plate Auto Iron CNC Cone Rolled Steel Machine Cold Automatic Electric Rolling Machines

Product Description

JUGAO 4 Rolls Plate Auto Iron CNC Cone Rolled Steel Machine Cold Automatic Electric Rolling Machines Keywords:bending roll machine,cnc plate bending machinery,cnc rolling machine,hydraulic rolling machine,metal rolling machine,plate bending machinery,plate bending roll,plate rolling machine,roll bending machine,roll bending machine,sheet rolling machine

The machine has pre-bending function for plate edge ,and can bend roll the plate one time without any thing re-rolling with combined procedure or prebending and bending roll into shape. The upper roller is the main drive roll, the down roller and two side rolls up-and-down movement is controlled by hydraulic drive. The up-and-down displacement of the down and side rollers are controlled by computer..Automatic leveling,display by screen , high synchronization precision ±0.2MM.Turnover bearing body dumping and reset is done through hydraulic transmission.The upper roll end has balance equipment to be convenient take of the rolled cylinder and workingpieces.There are moveable independent operation table for easy moveable operation.
1. The four-roller bending machine adopts a torsion-axis synchronous structure, and the four-roller coiling machine has high precision and roundness after being rolled up!
2. Full hydraulic motor drive, four-roller coiling machine is environmentally friendly and energy efficient.
3. Straight side is short and the pre-bending effect is good! More suitable for roll cones .
4. The four-roller reeling process is completed in one pass, including bilateral pre-bending. The four-roller reeling machine is fast, efficient, and easy to operate, requiring only one operator .
5. With automatic alignment and clamping function, the plate will not slide and run off.
6. The four-roller bending machine has anti-overload and hydraulic protection functions.
7. With anti-wear, permanent lubrication-free features.
8. The diameter of the reel is small (the four-roll bending machine can roll a cylinder that is less than 1.1 times the diameter of the upper roller, and the linear sliding-guided Rolling machine can have a diameter of 1.4-0.5 times the diameter of the upper roller).
Product parameters

Specification	Max roll thickness(mm)	Max roll width	Yield strength	Roll speed	Min roll diameter	Diameter of upper roller	Diameter of down roller	Diameter of side roller	Motor
		(mm)	(Mpa)	(m/min)	(mm)	(mm)	(mm)	(mm)	(kw)
W12-25X2000	25	2000	245	4	800	350	320	240	22
W12-20X2500	20	2500	245	4	640	350	320	240	30
W12-30X2000	30	2000	245	4	1000	400	360	240	37
W12-25x2500	25	2500	245	4	800	400	360	240	37
W12-35x2000	35	2000	245	4	1200	420	380	210	37
W12-30X2500	30	2500	245	4	1000	400	360	230	37
W12-40X2000	40	2000	245	4	1400	480	400	420	45
W12-45X2000	45	2000	245	4	1600	500	450	380	45
W12-35X2500	35	2500	245	4	1200	480	400	420	45
W12-40X2500	40	2500	245	4	1400	500	450	380	45
W12-45X2500	45	2500	245	4	1600	530	480	450	63
W12-35X3000	35	3000	245	4	1200	500	450	380	45
W12-45X3000	45	3000	245	4	1600	560	500	450	63
W12-55X2500	55	2500	245	4	2000	600	550	500	75
W12-55X3000	55	3000	245	4	2000	620	560	500	75
W12-65X3000	65	3000	245	4	2400	670	600	550	110
