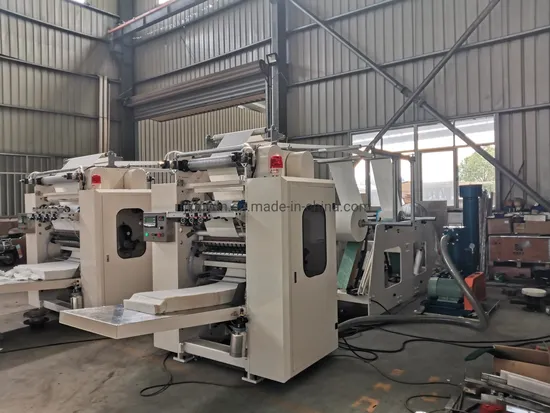

Automatic V Fold Hand Towel Paper Product Machine

Product Description

Product Overview XY-BT-288V Automatic V fold hand towel paper product machine V folding hand towel machine process paper material after embossing, cuting off, interfolding become V fold, The products are widely used in hotels, office and kitchen and so on, convenient health. This machine can folding, slitting, counting, with high speed, output orderliness. Function and characteristics
1. Production speed :900 sheets/line/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range: 33-45g/m2 (single ply)
6. To be order two layers glue lamination .(Optional) VIDEO LINK: https://youtu.be/XYA61ew6mKQ Production specifications

Machine Model	XY-BT-288
Unfold size of finished products	210(L)*230±2mm(Other sizes are available)
Folded size of finished products	105(L)*230±2mm(Other sizes are available)
Raw material size	1380mm
Raw material inner core diameter	76.2mm (Other sizes are available)
Production speed	900 sheets/line/min
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding type	Vacuum suction " V" fold
Transmission unit	Timing belt and flat belt
Counter	Ink marked
Embossing unit	Steel to steel
Slitting unit	Pneumatic dot slitting
Pneumatic system	3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer)
Total power	11-45Kw(380V 50Hz three phase)
Overall dimension	Depends on Machine Model
Weight	Depend on the size and configure

Finished product Workshop
Company profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Packing and Shipping
FAQ
Q: Are you trading company or manufacturer A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
