Salt Coffee Beans Sugar Universal Grinding Mill Herb Chilli Spices Grinder

Product Description

CE Stainless Steel Salt Coffee Hard Beans Sugar Moringa Leaf Universal Grinding Mill Herb Chilli Spices Grain Powder Grinder
The machine is widely used for material crushing in the industries of pharmaceutics, chemical and foodstuff, etc.
Features
1.Compact shape, parts repair and replacement easy
2.Mechanical stability, low energy consumption, crushed, crush phenomenon, not raise he crushed temperature
3.Lower energy consumption,compared with the traditional omnipotent pulverize, it could save 30% power
4.Equipment structure compact, floor space small
5.In crushing box no stitch line, no dead space, easy to unpick and wash, disinfect, change variety expediently, meet with the GMP standard
6.The scope of shatter granularity, the grain diameter of end product is 20-200 item scope adjusted arbitrarily; machinery roundly, the output is 15~500kg/h machinery optionally

How to work

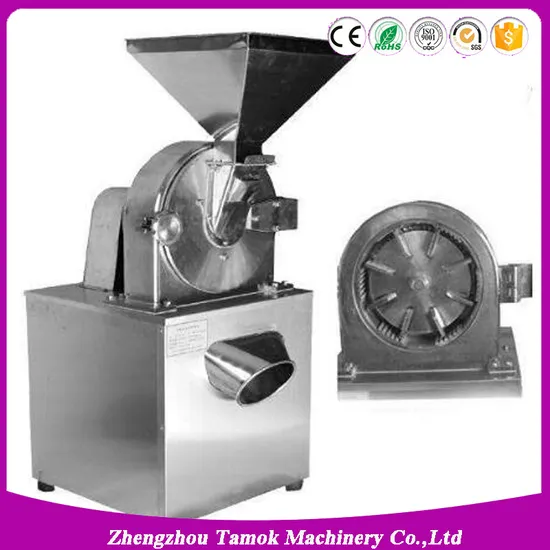

This machine uses the relative motion between movable and fixed teeth disc,and the raw materials is grinded by the comprehensive actions such as impacted by teeth, friction, impact between raw materials. The crushed material canbe discharged through the grinding chamber. Moreover, different size of granule or powder can be got through exchanging screen with different mesh. Its inner wall is processed finely, so it is smooth and level, which overcomes the shortcomings existed in the old model such as roughness, accumulated powder.
Application scope
1.Grain:corn,rice,wheat,oats,barley,sorghum,buck,wheat,millet,green beans, green beans,cassava.
2.Spices:mint,cinnamon,star anise,fennel,citronella,osmanthus flowers,lemon grass,ginger,turmeric,Chinese prickly ash,black pepper,white pepper,pepper, garlic,Chloe,fennel,cloves.
3.Seasonings:white sugar,salt,monosodium glutamate,chicken essence etc
4.Chinese herbs:ginseng,jujube,pseudo-ginseng,angelica, etc
5.Food:coffee,cocoa beans,puffed food, etc
6.Wet ingredients:chili sauce,cabbage,tomato,shrimp,various fruits etc.
7.Crisp Chemicals.
Technical parameters

Model	15B	20B	30B	40B	50B	60B	80B
Capacity(kg/h)	10-150	60-150	100-300	160-800	200-1000	250-1500	350-2000
Input size (mm)	<6	<6	< 8	< 10	<12	< 15	< 18
Fineness (mesh)	20-120	20-120	20-120	20-120	20-120	20-120	20-120
Power (kw)	2.2	4	5.5	11	15	22	30
Speed (r/min)	6000	4500	3800	3400	3000	2800	2400
Dimensions (mm)	550*400*850	600*550*1250	700*600 *1450	900*800*1550	1050*850*1750	1100*900*1880	1200*950*2000
Weight (kg)	150	280	340	450	550	670	900

Pictures
