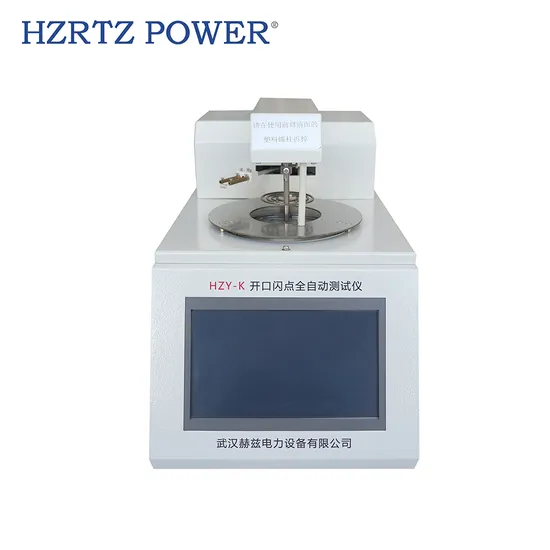

ASTM D92 Standard Transformer Oil Cleveland Open Cup Flash Point Tester

Product Description

Product Description
HZY-K Automatic Open Cup Flash Point Tester is used to determine the open flash point value of petroleum products. The instrument adopts electric ignition method without any flammable gas, which meets the method requirements of GB3536-2008 and GB267-88. It adopts ARM series high-performance microprocessor, electrically erasable memory (which can store thousands of data records), 7-inch color LCD and touch screen, PID self-tuning and many other latest technologies.
Product Features
1. Strong function. Detect the flash point and print the test results, with internal clock chip, automatically display the current date, time, power-down keep.
2. High precision. Temperature error control within ± 1 ºC, resolution of 0.1 ºC.
3. Good repeatability. In order to ensure that the test environment in line with GB3536 or GB/T 26788, continuous testing of the same sample, the difference between the two flash point value of ≤ 4 ºC.
4. High degree of automation. Can automatically complete the test process, automatic cooling, automatic information prompts.
5. The interface is friendly and humanized stronger, all English characters input, convenient for users to mark and find.
Open flash point tester function and performance and the highest level of domestic and foreign convergence, is the petroleum, electric power, chemical industry, commodity inspection and other industries to replace the imported products of the special
instrument.
Detailed Photos
Technical Parameters
1. Determination range: 40ºC~400ºC
2. Detection type: open flash point
3. Temperature detection: platinum resistance
4. Accuracy: ±1ºC
5. Repeatability: in line with GB3536-2008, GB/T 267-88
6. Display: 7-inch touch screen, color liquid crystal display
7. Information storage: 1000 measurement results can be stored
8. Ignition mode: electric ignition
9. Cooling mode: forced air cooling
10. Atmospheric pressure: automatic detection of atmospheric pressure, automatic correction of test results
11. Printer: Dot-matrix thermal printer
12. Self-checking function: lifting lever, sweeping lever, printing, etc.
13. Power consumption: ≤600VA
14. Power supply: AC 220V±11V, frequency 50Hz±2.5Hz
15. Operating temperature: 10~35°C
16. Humidity: ≤90%.
17 Packing weight: about 17kg
