Pet Preform Blowing Bottle Mold Stretch Blowing Moulding Machine

Product Description

Full Servo High Speed Pet Mineral Bottle Blow Moulding Machine
1.High quality compact machine Most popular pet bottle blowing machineJS-4C-2L With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

Technical Reference
Machine model		JS2000	JS2000H	JS2000B	JS4000	JS4000H	JS6000
Pcs/hr		2000	1200	1400-1800	4000	2200	6000
Bottle Volume	L	0.2-2	0.2-2	1-5	0.2-2	0.2-2	0.1-0.7
Preform inner diamter	MM	15-40	15-40	55	15-40	15-40	15-40
Max.bottle diameter	MM	20-105	20-95	180	20-105	20-95	20-70
Max.bottle height	MM	350	350	350	350	350	280
Cavity	PC	2	2	2	4	4	6
Main machine size	M	2.8*1.8*2.2	2.8*1.8*2.2	2.6*2.25*2.4	3.8*2.3*2.2	3.8*2.3*2.2	3.8*2.3*2.2
Weight	T	3.0	3.0	3.3	4	4	4

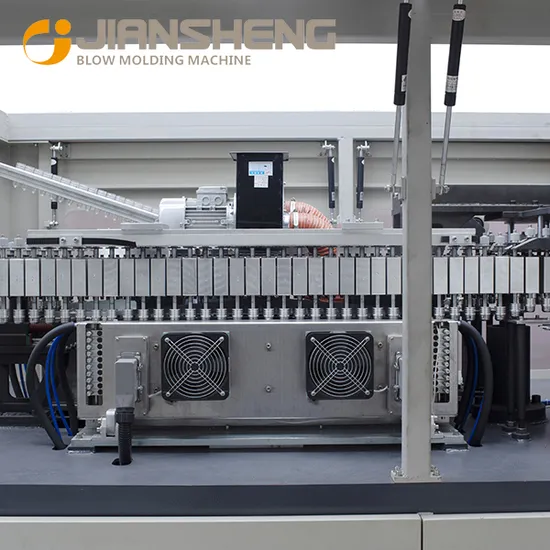

Internal details of the Machine
