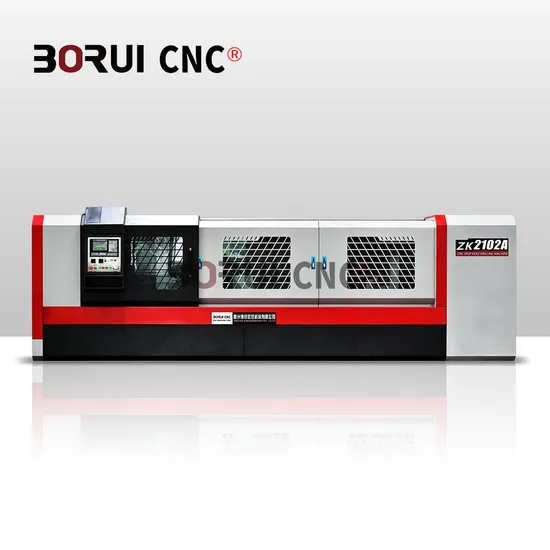

Zk2102A Four Spindles High Quality Horizontal CNC Deep Hole Drilling Machine

Product Description

ZK2102A Four Spindles High Quality Horizontal CNC Deep Hole Drilling Machine Product Description
Machine Specification:

Specifications	ZK2102A	ZK2102A×2	ZK2102A×4			ZK2103A	ZK2103A×2	ZK2104A
Number of spindles	1	2	4			1	2	1
Spindle spacing		120/180mm	120mm				180mm
Borehole diameter range	3-20mm	3-20mm	3-10mm	4-16mm	8-20mm	6-30mm	6-30mm	10-40mm
Maximum drilling depth	500/1000mm	440/950mm	440/950mm			440/950mm	440/950mm	440/950mm
Total power of machine tool (approx.)	7000r/min	7000r/min	7000r/min	6000r/min	5000r/min	7000r/min	6000r/min	3000r/min
Power of main motor of drill pipe box	4kW	4kW×2	3.7kW×2	4kW×2	5.5kW×2	5.5kW	5.5kW×2	7.5kW
Headstock spindle speed (fixed)	380r/min	600r/min	500r/min			380r/min	600r/min	380r/min
Headbox main motor power	1.5kW	3kW	2.2kW×2			1.5kW	2.2kW	5.5kW
Tool feed speed range (stepless)	5-500mm/min	5-500mm/min	5-500mm/min			5-500mm/min	5-500mm/min	5-500mm/min
Spindle speed of drill pipe box (stepless)	800-7000r/min	800-7000r/min	1000-7000r/min	800-5000r/min	600-4000r/min	600-6000r/min		100-3000r/min
Feed speed range (stepless)	5-500mm/min	5-500mm/min	5-500mm/min			5-500mm/min		5-500mm/min
Tool feed rapid travel speed	3m/min	3m/min	3m/min			3m/min	3m/min	3m/min
Tool feed motor torque	7.7Nm	7.7Nm	7.7Nm			10Nm	10Nm	10Nm
Cooling system * high pressure	10MPa	10MPa	10MPa			10MPa	10MPa	10MPa
Cooling system * large flow	100L/min	100L/min	100L/min	100L/min	150L/min	100L/min	150L/min	150L/min
Total power of machine tool (approx.)	20kW	24kW	39kW	40kW	42kW	22kW	28kW	38kW
Overall dimensions of machine tool (length × wide × High)	4.05/5.05×4.05×2.05m
Total weight of machine tool (approx.)	6t/7t	6t/7t	6t/7t			6t/7t	6t/7t	7t/8t
Machining hole diameter accuracy of machine tool	IT7-IT11
Roughness of machine tool	Ra0.4-3.2µm
Deviation of center line of machine tool machining hole	Workpiece does not rotate:≤1mm/1000mm Workpiece rotation:≤0.5mm/1000mm(Aspect ratio≤100:1)
Straightness of machined holes	≤0.05mm/100mm(Aspect ratio≤100:1)

Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
