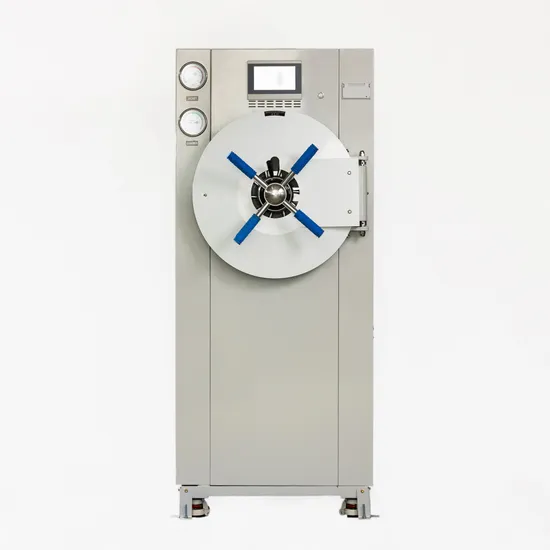

200L Horizontal Cylindrical Chamber Autoclave Automatic Pulsating Vacuum Sterilizer with Printer

Product Description

Horizontal autoclave with pulse vacuum system medical Autoclave 150 200 300 liter

Use
The sterilizer uses pressure saturated steam to sterilize the articles. Pulsating vacuum exhaust is used to eliminate the influence of cold air on temperature. Finally, vacuum dehumidification combined with jacket drying is used to dry the articles. It makes use of the physical characteristics that pressure saturated steam can release a large amount of latent heat when condensing, so that the articles to be sterilized are in a high temperature and humidity state. After a certain period of time, all bacteria and spore tissues in the articles are destroyed, so as to achieve the purpose of sterilization. Mainly used in hospitals, chemical, food, scientific research, pharmaceutical and other units, surgical instruments
Characteristics
• Automatically controlled the sterilizing process, easy to operate.
• It has three times or more pulsating vacuum. It is suitable for all kinds of packed, non packed, hollow porous and internal pipeline instruments.
• The sterilizer is equipped with a steam generator, and one set of movable sterilization plate is randomly adapted.
• The inner cavity of the sterilizer is a circular double-layer design, which is composed of a sterilization chamber and a jacket, and has the function of deep drying.
• With printing function, the printer can record the whole process of sterilization.
• With Bowie & Dick test function for steam penetration test.
• With over-temperature, over-pressure auto-protect.
• Safety interlock device: when the door is not closed tightly, steam can not enter the main body of the inner layer and give an alarm. When the pressure in the sterilization room is greater than 0.027mpa, the door is interlocked and cannot be opened.
• Over-pressure protection: when the pressure exceeds the working pressure, the safety valve will automatically relieve the pressure
• Low water level protection device: the water can not be started until the high water level, and it will be automatically cut off when the low water level is short of water.
• Over current protection: when the current overload, the power circuit breaker will automatically cut off the power supply.
• Sealing door: manual door opening and closing, radial rod rotary table type, equipped with two-stage self-locking, interlocking safety device, single door (double door optional), with pressure safety interlock device.
• The sterilization room is made of high quality stainless steel. Product Parameters
Technical Data:

MODEL	WS-100YV	WS-150YV	WS-200YV	WS-300YV
Technical Data
Sterilizing chamber volume	100L φ440×670mm	150L Φ440×1000mm	200L Φ515×1000mm	300L Φ600×1080
Working pressure	0.22Mpa
Working temperature	134ºC
Temperature adjust range	115-134ºC
Time for sterilization	0-99min
Time for drying	0-99min
Heat average	≤±2ºC
Vacuum limit	-0.08Mpa
Power	10kw/380V 50Hz	10kw/380V 50Hz	10kw/380V 50Hz	13kw/380V 50Hz
Dimension(mm)	1400×660×1640	1400×660×1640	1400×750×1740	1520×850×1850
Exterior package dimension(mm)	1560×820×1820	1560×820×1820	1560×910×1880	1680×1080×2100
G.W/N.W	430/376kg	458/404kg	505/440Kg	613/528Kg
