100W DVB-T/T2 UHF Transmitter

Product Description

100W DVB-T/T2 UHF TRANSMITTER
Product Description
UHF Outdoor Terrestrial DTV Transmitter

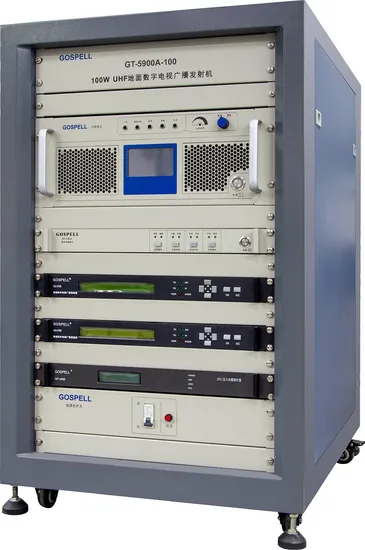

GOSPELL's GT-5900-100 UHF Terrestrial DTV Transmitter whose working frequency range is 470-860MHz(in any 200Mhz optional) with high performance, high stability and high reliability of GOSPELL branded product series.
This equipment is with small size and simplified architecture but has advance designs with the advantage of lower noise, higher efficiency and outstanding anti-interference performance; Meanwhile, it supports DVB-T/T2,ISDB-T,ATSC-T standard and other various modulation modes, thus it has great flexibility and suitability in actual implementation.
Main Features 470~860MHz (in any 200Mhz optional) Support multiple modulation standards, including DVB- T/T2, ATSC-T and ISDB-T Module design ,easy for installation, maintenance and upgrade. 1 + 1 backup Use effective LDMOS power-amplifier and linear circuit design to reduce the power consumption Support ALC and AGC power control mode (optional) to ensure stability of output power Use variety of protection mechanism such as over-excitation, over-current, over-heat, standing wave protections to greatly enhance the stability of equipment Perfect delay technology avoids the damage of the burst signal Support local and remote monitoring/detection. Support Web Management and GPRS remote monitoring(optional) Block Schematic Diagram of Equipments
Product Parameters
Technical Specification

General Specifications	Volume(W*L*D)	485*694*305mm(4U 19inch)
	Weight	43KG
	Operating Temperature	0~45°C
	Storage Temperature	-25~85ºC
	Operating Humidity	10%~90% non-condensing
Power supply	Power Voltage Input	AC 220V±10% 50Hz
Connector	RF Input	N-50K
	RF Output	N-50K
	RF Monitoring Output	SMA-50K
	TS data input	BNC-75K (Exciter)
	10MHz data input	BNC-50K (Exciter)
	1PPS data input	BNC-50K(Exciter)
Heat Dissipation		Forced and natural air cooling
AGC Power Control Range		±8 dB
Input Signal Level		85dBuv±8 dB
Modulation Standard		DVB-T/T2 ,ISDB-T,ATSC-T
