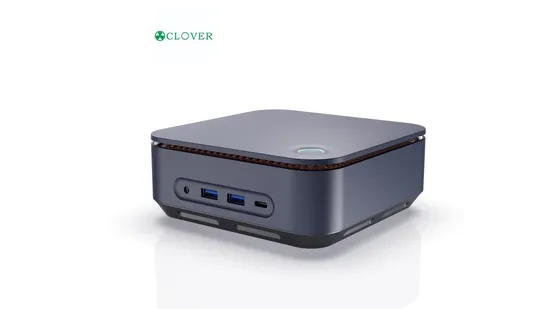

Cheap Office Micro Computer VGA WiFi Gigabit Ethernet Intel I5 1135g7 Quad Core CPU Linux Win 10 Fanless Mini PC
Basic Info.
Model NO.
CM208
Network Mode
WiFi, 3G, 4G
Hard Disk Capacity
≥128g
Webcam
Webcam
Battery Capacity
＞8000mAh
Built-in Bluetooth
Built-in Bluetooth
Built-in Microphone
Built-in Microphone
Card Reader
Card Reader
Front Camera Pixel
0.3MP-1MP
Fingerprint
Fingerprint
Screen Size
Without Screen
Screen Type
Without Screen
CPU Type
Windows
CPU Core
I5 11 Th Gen
Customized
Support Customized
HDMI
Input
Panel Voltage Select
3.3V/5V/12V
Standby Consumption
<0.5W
Material
Aluminum Alloy
Input Voltage
12V
Earphone Input
0.2 ~ 2.0 V RMS
Format
up to 8K
Transport Package
Box
Trademark
No Brand
Origin
China
HS Code
8466939000
Production Capacity
250, 000pieces/Month
Packaging & Delivery
Package Size
12.00cm * 6.00cm * 6.00cm
Package Gross Weight
1.000kg
Product Description
mini pc| Appearance | |||
| Item | Spec | Description | Optional |
| Product Form | Product Form | MINI PC | |
| Dimension | 128.4mm*128mm*39.7mm | ||
| Shell Material | Plastic | ||
| Hardware | |||
| Item | Spec | Descrition | Optional |
| CPU | Type | Intel Tiger Lake i5 1135G7 ; i7 1165G7; i3 10100 | |
| Frequency | 2.4GHz ( 1135G7) ; 2.8Ghz(1165G7 ) | ||
| Turbo Frequency | 4.2GHz (1135G7) ; 4.7GHz(1165G7 ) | ||
| Power | 28W (1135G7); 28W(1165G7 ) | ||
| Memory | Type | 2xSO-DIMMDDR4 | |
| Capacity | 2xSO-DIMMDDR4 Max 64GB | ||
| Storage | EMMC | No support | |
| SSD | M.2 2280 MVME/ NGFF,Max 2TB | ||
| 2.5" SSD | Support Max 2TB | ||
| TF card | NA | ||
| RTC | BIOS support | Real time clock,power on by timer | |
| Auto power on | BIOS support | Support auto power on when plug power | |
| Diskless Network | BIOS support | support uefi boot | |
| TPM | CPU integrated TPM | support TPM 2.0 | |
| Dual Display | video output | support HDMI+DP dual display output | |
| Network | |||
| Item | Spec | Description | Optional |
| WIFI | Type | M.2 E_key intel 7265/ 3165 | |
| Protocol | IEEE 802.11 a, b/g, n, ac | ||
| Bluetooth | Type | M.2 E_key intel 7265/ 3165 | |
| Protocol | Support Bluetooth 4.2/5.0 | ||
| 3G | Built-in | No | Optional |
| 4G | Built-in | No | optional |
| Ethernet | LAN1 | 10M/100M/1000M self-adaptive LAN card | |
| I/O PORTS | |||
| Item | Spec | Description | optional |
| USB | USB2.0 | No | |
| USB | USB3.0 | USB3.0 Type-A*4 | |
| TF | TF card extension | No | |
| HDMI | Audio/Video Output | HDMI 1.4b Type A x1 | |
| VGA | Video output | No | |
| DP | Audio/Video Output | DPx1 | |
| RJ45 | 1000mbps Ethernet | RJ45 x1 | |
| type_c | Data transfer | 1*Type_c full function, suport data transfer/video&Audio output | |
| POWER Switch | Power button | Power on/off buttonx1 | |
| DC IN | power input | 5.5/2.1mm DC Jack x1 | |
| Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 2in1 port | |
| Antenna1 | FPC antenna | WiFi 5.0Ghzx1 | |
| Antenna2 | FPC antenna | WiFi 2.4Ghz+BT x1 | |
| Software | |||
| Item | Spec | Description | Optional |
| OS | version | Win10 pro/Win11 pro/Ubuntu | |
| Accessories | |||
| Item | Spec | Description | Optional |
| Adapter | Wall charger | Input 100~240V 50/60Hz Output:19V/3.42A DC pin: 5.5*2.1mm | |
| IR Remote control | No | ||
| VESA mount | support | ||
