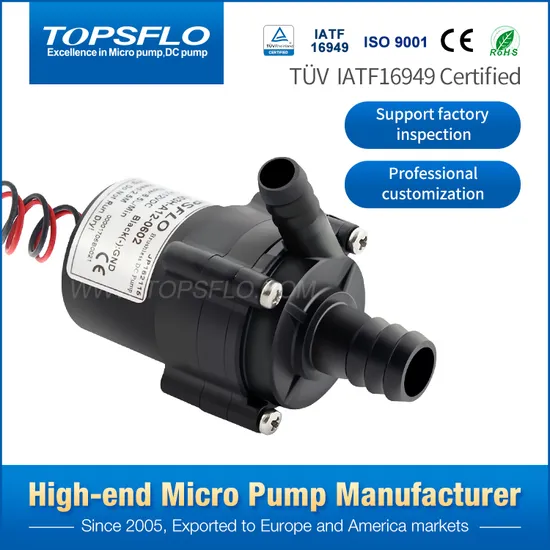

Silent DC Mini Pump Cooling Computer Pump

Product Description

Silent DC Mini Pump Cooling Computer Pump
♦ 16000M2 modern factory with its own physical property rights, ESD anti-static control dust free workshop,
100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 50 patents in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
Application:
Water Dispenser/Water Coolers , Coffee Maker/Coffee Machine , Beverage Dispenser/Juice Machine
Water Purifier, Tea Maker, Milk Dspenser , Fountain, Hydroponics
Instant filtered drinking system
Features:
Advanced magnetic driving technology, static-seal without any leakage forever
High efficiency ECM brushless DC motor with long lifetime
Heavy duty work,can sustain 24 hours continuous running
Special designed high efficiency closed-impeller
Wide voltage range suitable for battery power supply
All wetted materials FDA certified (food safe)
Small size, light weight
Max temperature 105ºC
Durable permanent magnetic rotor and high density ceramic shaft
Specification:

Model:TL-B03
Model	Product Code		Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Rated Power(W)
B03	TL-B03-A12-0602		6.5	12	0.43	2.5	5.16
	TL-B03-A24-0602		6	24	0.22	2	5.28
	TL-B03-A12-0501		4.8	12	0.2	1.2	2.4

Application Conditions
1	Environment temperature						-40~40ºC
	The use of water temperature						-40~105ºC
2	Operation Surroundings						70%RH and 100%RH
3	Working liquid						Pure Water,antifreeze,etc
4	Max pressure / Continue work Pressure						1.8Mpa / 0.5Mpa

Get more Technical data, please contact us !
Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).
TOPS INDUSTRY AND TECHNOLOGY CO., LIMITED started in 2005, is the world's leading supplier of micro pump solutions, and won the "National High-tech Enterprise". The company is mainly engaged in the research and development and manufacture of miniature brushless DC pumps and miniature diaphragm pumps. 80% of the products are exported to high-end markets in Europe and America, and are mainly used in water heaters, small household appliances, water heating mattresses, medical equipment, smart toilets, automobile circulation systems, etc. The company has always been known for its high quality and high batch consistency, and has established solid and good cooperative relations with many world-renowned brands, such as: Tesla, Whirlpool, Flextronics, Kohler, GE, Roca, KTM, Geberit, etc.
Get more detail, please contact us !
