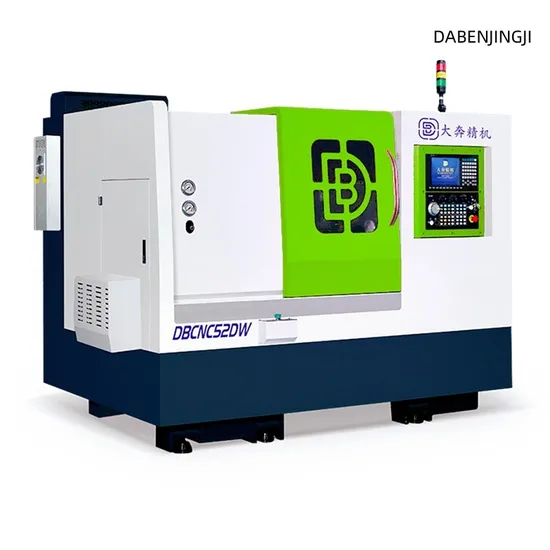

CNC Lathe with Turret and Tailstock for Superior Machining Performance (dB-6152 Series)

Product Description

Model characteristics
1.Equipped with a 12-station turret boasting high rigidity and precision at a 420mm 100-center-height.
2.Utilizing high-rigidity servo turrets, allowing for fast tool changes and enabling complex part machining.
3.Programmable hydraulic tailstock, facilitating effortless workpiece clamping with one-touch 4.positioning and release, offering dual-speed control for quick and slow operations.
4.The 30-degree bed design significantly reduces the load on the X-axis motor, enhancing rigidity and stability through the use of ball screws.
5.The side face features a functional module of power tools capable of drilling, tapping, and milling flat surfaces, completing precise drilling for various shaft components.
6.Capable of large-scale precise machining of steel and stainless steel, including drilling and threading on shaft ends. The tailstock machine can process long shaft parts.
Standard configuration
- New generation system
- Japanese NSK bearings
- Japanese THK lead screws
- Integral cast iron bed
- German Rexroth linear guides
- Taiwan Jiancheng / Taiwan Pusen spindle
Experience the power and precision of our CNC lathe machine for all your machining needs.
Technical parameters

Model	DBCNC52DW
Item	Describe	unit	Parameter
Spindle	Spindle nose end	/	A2-6
	Spindle bore	mm	65
	Bar diameter	mm	52
	Chuck/collet size	/	8 "/52 type collet
Machine range	Maximum slewing diameter	mm	600
	Maximum turning diameter	mm	350
	Maximum processing length	mm	500
Mechanical capacity	Maximum spindle speed	rpm	4000
	Maximum speed of milling axis	rpm	0-4000
	Maximum X/Z speed	m/min	25/15/25
Mechanical precision	Spindle indexing repeatability	/	±0.005°
	Spindle indexing positioning accuracy	/	±0.002°
	X/Z axis repeatability	mm	0.002mm
	X/Z axis positioning accuracy	mm	0.003mm
Axial travel	X-axis travel	mm	260
	Z-axis travel	mm	550
	X-axis travel
Turret	Turret model	/	100
	Number of tool positions	T	420/12T
Automatic hydraulic tail top	Tailstock travel	mm	450
	Core stroke	mm	100
Motor power	Spindle servo motor	KW(HP)	11.0-15.0
	X/Y axial servo motor	KW(HP)	2.4-3.1
	Servo motors for milling axes	KW(HP)	3.1
	High pressure oil pumps	KW(HP)	0.75
Other than	Height of spindle from ground center	mm	1050
	Total machine power	KW	Abou 13
	Machine external dimensions (L*W*H)	mm	Abou 2200*1510*1650
	Overall weight	KG	Abou 4300

Detailed Photos
Explore detailed images of the Highly Advanced DB-6152 Series Turret Tailstock CNC Lathe by Dongguan Daben Intelligent Equipment Co., Ltd. This CNC lathe delivers precision and versatility for complex metal components. Get a closer look at this cutting-edge machine center.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures
common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.
