Basic Info.
Certification
CE, ETL, RoHS
Operating Voltage
220-240V
Lamp Luminous Efficiency(Lm/W)
150
Certificate
ETL, cETL, SAA, CE, RoHS
Bracket Type
U-Bracket+T Pole /Slip Fitter
Operation Temperature
-35-55
Surge Voltage
4kv; 10kv/20kv Optional
CRI
>70ra(>80/90ra Optional)
Luminous Efficacy
150lm/W±10%
Applications
Football Fields Soccer Fields Arena Stadiums
Transport Package
36*34*25
Packaging & Delivery
Package Size
33.70cm * 32.40cm * 21.20cm
Package Gross Weight
6.500kg
Product Description
Features

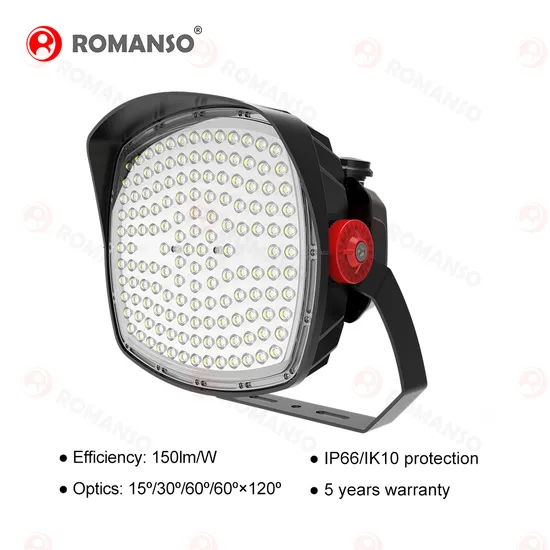

Stitching design, 240W~1200W are composed of 1-4 lights; Light Efficiency: 150lm/W; Optics of 15º/30º/60º/60º×120º available on request; High-transmittance and anti-UV Frosted Polycarbonate lens; High reliable Meanwell/Inventronics Driver; Excellent thermal management design; Die-casting aluminum with polyester powder coat finish; IP66/IK10 rating for outdoor usage; Easy installation and low maintenance; Energy savings, no UV and IR radiations, emits low heat; Intelligent dimming system: 0-10V, DMX and DALI dimming modes; ETL/cETL/FCC/CE/RoHS approval; 5 years warranty
Wattage | 240W | 300W | 500W | 600W | 800W | 900W | 1000W | 1200W |
Lumen Output | 36,000lm | 45000lm | 75000lm | 90000lm | 120000lm | 135000lm | 150000lm | 180000lm |
Luminous Efficacy | 150lm/W±10% |
Beam Angle | 15°/30°/60°/60×120° |
Color Temperature | 2700K~6500K |
Input Voltage | 100-277Vac/200-480Vac, 50/60Hz |
Life Hours | >50,000 |
CRI | >70Ra(>80/90Ra optional) |
LED Driver | Meanwell/Inventronics |
DF | >0.9 |
Surge Voltage | 4KV; 10KV/20KV optional |
Operation Temperature | -35ºC-55ºC |
IP Rating | IP66 |
Warranty | 5 years |
FAQ:
Q1: Are you a manufacturer?
ROMANSO: Yes, we have our own factory with over 12 years R&D and manufacture experience base on ISO quality management since 2007.
Q2. Can I have a sample order for LED Stadium Light?
ROMANSO: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.
Q3. How about the lead time of LED Stadium Light ?
ROMANSO: 5-7 days for sample order, 15-25 days for mass production order base on order quantities.
Q4: How do you ship the finished production ?
ROMANSO: By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc) are optional.
Q5: Is it OK to print my logo on LED Stadium Light ?
ROMANSO: We provide OEM service to our customers, we can help to make the label and color box according to your requirements.
Q6: How to proceed an order for LED Stadium Light ?
ROMANSO: Firstly, please let us know your detail requirement and application environment, secondly we will recommend some suitable products and solutions to you according to your request. Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, then we start for the production and arrange the shipment.
Q7: How to deal with the defective?
ROMANSO: All of our product are produced in strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
