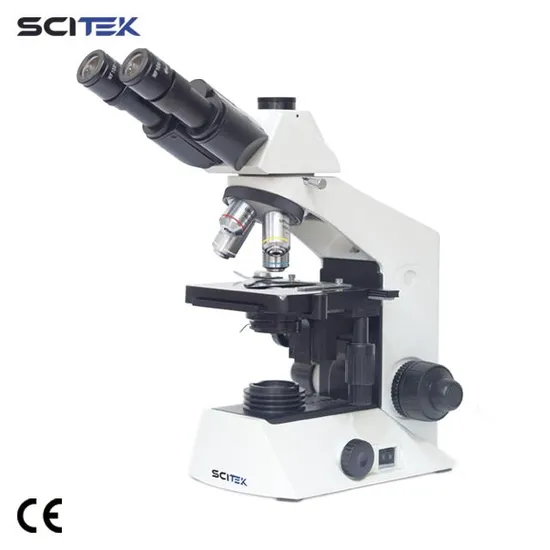

SCITEK Biological Microscope Infinity Optical System 3 Years Warranty Microscope for Lab
| US$390.00-460.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
MSC-B201T
Magnification
40X-1000X
Type
Biological
Number of Cylinder
≥Three
Mobility
Desktop
Stereoscopic Effect
Without Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Ball, Hemisphere
Usage
Teaching, Research
Principle
Optics
Principle of Optics
Biological Microscope
Nosepeice
Quadruple Nosepiece/Xquintuple Nosepiece
Stage
Double Layers Mechanical Stage 140X135mm/75X50mm
Condenser
Abbe Na1.25 with Iris Diaphragm & Filter
Power Supply
AC220/110V 10%, 50/60Hz
Filter
White Filter
Transport Package
Wooden or Carton Package
Specification
360x260x470
Trademark
SCITEK
Origin
China
Production Capacity
100 Units/Months
Packaging & Delivery
Package Size
36.00cm * 26.00cm * 47.00cm
Package Gross Weight
8.000kg
Product Description
Product DescriptionFunction:
Viewing Head : Seidentopf Binocular Head, Inclined at 30°, Interpupillary 55-75mmEyepiece : Wide Field Eyepiece WF10x18mm, xWF16×; xWF20×xWF10x22mmObjective : Infinite plan Achromatic Objective 4x, 10x, x20x, 40x, 100× / xInfinite Plan Phase Objective Ph10x, 20x, 40x, 100x
Product Parameters
| Model | MSC-B201T |
| Optical System | Infinity Optical System |
| Viewing Head | Siedentopf Trinocular Head,Inclined at 30°,Interpupillary 55-75mm |
| Eyepiece | Wide Field Eyepiece WF10X18mm ,xWF16×;xWF20×xWF10X22mm |
| Objective | Infinite plan Achromatic Objective:4×,10×,x20×,40×,100× |
| xInfinite Plan Phase Objective:Ph10x,20x,40x,100x | |
| Nosepeice | Quadruple Nosepiece/xQuintuple Nosepiece |
| Stage | Double Layers Mechanical Stage 140×135mm/75×50mm |
| Condenser | Abbe NA1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm |
| Illumination | 3W LED Lamp, Brightness Adjustable |
| 6V 20W Halogen Lamp, Brightness Adjustable | |
| Package | Styrofoam |
| Carton | |
| Wooden Case | |
| Filter | White Filter |
| Optional | Turret Phase Contrast Kit; Dark Field Attachment Microscope Camera / Win 10 Pad / Digital display |
| Shipping Size (W×D×H)(mm) | 360x260x470 |
| G.W. (kg) | 8 |
