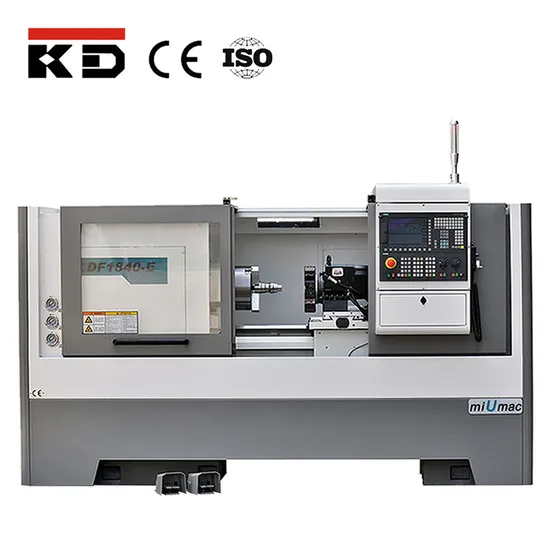

Manufacture Centre CNC Electric Machinery Drilling Tapping Lathe
| US$12,550.00-15,353.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DF1860-F
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Swing
460mm
Max Swing Over Carriage
240mm
Max Workpiece Length
1500mm
Spindle Bore
80mm
Spindle Nose
D8
Spindle Speed
100-2000rpm
Tool Post
4-Way/6-Way/8-Way Tool Post
Main Motor
5.5kw or 7.5kw
Rapid Feed X/Z Axis
8/10 M/Min
Transport Package
Export Wooden Case
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100
Product Description
Manufacture Centre CNC Electric Machinery drilling tapping latheProduct Description
| MODELS | CK6140ZX | CK6146ZX | CK6150ZX |
| CAPACITY | | | |
| Max.swing over bed | Ф400mm | Ф460mm | Ф500mm |
| Max.swing over carriage | Ф210mm | Ф240mm | Ф280mm |
| Max. length of workpiece | 750/1000/1500mm | 750/1000/ 1500mm | 1000/ 1500mm |
| Max.turning length | 600/850/1350mm | 600/850/1350mm | 850/1350mm |
| 6-way turret Max.turning length | 430mm | 430/680/ 1180mm | 680/ 1180mm |
| 6-way turret Max.turning diameter | 280mm | 340mm | 340mm |
| TRAVEL | | | |
| Max.cross travel(X) | 250mm | 280mm | 280mm |
| Max.longitudinal travel(Z) | 710/960/1460mm | 710/ 960/ 1460mm | 960/ 1460mm |
| FEED | | | |
| Rapid feed for axis X | 8m/min | 8m/min | 8m/min |
| Rapid feed for axis Z | 10m/min | 10m/min | 10m/min |
| SPINDLE | | | |
| Spindle nose | D8 | D8 | D8 |
| Spindle bore | Ф80mm | Ф80mm | Ф80mm |
| Taper bore of spindle | M.T.NO.7 | M.T.NO.7 | M.T.NO.7 |
| Steps of spindle speed (manual) | Variable | Variable | Variable |
| Range of spindle speed | 100~2000rpm | 100~2000rpm | 100~2000rpm |
| TOOL POST | | | |
| Tool post stations | 4-way, 6-way, 8-way | | |
| Tool cross section | 25×25mm | 25×25mm | 25×25mm |
| TAILSTOCK | | | |
| External diameter of tailstock sleeve | Ф75mm | Ф75mm | Ф75mm |
| Taper bore of tailstock sleeve | M.T.NO.4 | M.T.NO.5 | M.T.NO.5 |
| Max travel of tailstock sleeve | 130mm | 130mm | 130mm |
| OTHERS | | | |
| Min. input | 0.001mm | 0.001mm | 0.001mm |
| Main motor power | 5.5kw (optional 7.5kw) | 5.5kw (optional 7.5kw) | 5.5kw (optional 7.5kw) |
| Coolant pump power | 75w | 75w | 75w |
| Overall dimensions(L×W×H) | 2060×1180×1500mm | (2060/ 2310/ 2790)×1180×1500mm | (2310/ 2790)×1180×1500mm |
| Net weight | 2100kg | 2200, 2350, 2900kg | 2350, 2900kg |
