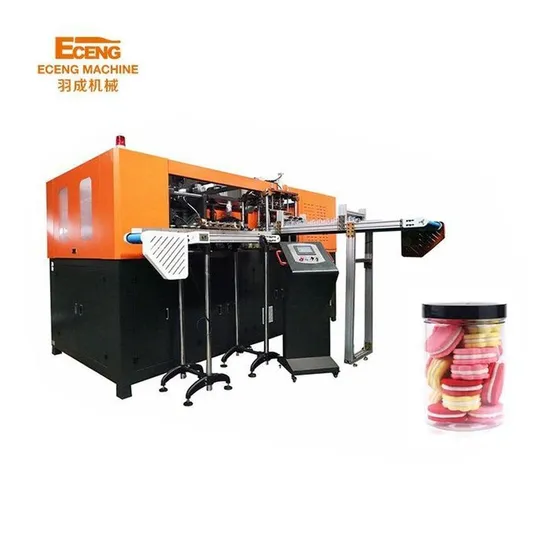

Max Volume 2L J Serious J4 Wide Mouth Bottle Blowing Machine

Product Description

Product Description
High-Speed Full-Servo Wide-Mouth Blow Molding Machine
The J series is a specialized equipment designed for wide-mouth PET bottles. This equipment has the characteristics of a high degree of automation, wide versatility, and simple operation. It is particularly suitable for the production and processing of large-diameter bottles with a diameter of 50-180. The J series blow molding machine has precise positioning and adopts an advanced microcomputer PLC control system. It can be more stable and suitable for the preform loading and automatic bottle unloading of wide-mouth bottles. One person can control two to three devices. High output can be equipped with full electric stretching and clamping.
Product Parameters

SPECIFICATION
Model	J4
Bottle type specification	Cavity	4
	Theory output	4000-5000
	Max.volume	2L
	Bottle mouth maximum overall DIdiameter	28-80mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
	Bottle type capacity	500ML
	Bottle type weight	20-22g
	Bottle type	circular
Power specifications	Light tube quantity	40pcs
	Light tube power	2KW
	Maximum heating power	80KW
	All electric machine installation	88KW
	Actual consumption	40%-70%
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3000Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10ºC
	Consumption	8000kcal/hr
	Forzen water flow	138L/min
Machine specification	Size of the machine	4.1x1.6x1.9
	Weight of the machine	3.9ton

Detailed Photos
ADVANTAGE 1
After many technical upgrades, it has become a classic product of Eceng Machinery.
ADVANTAGE 2
PLC control system, automatic feeding of conveyor belt, advanced automatic process flow, one-button fool-style start-up.
ADVANTAGE 3
There is a safety locking device in each mechanical action process to protect the safety of the operator.
ADVANTAGE 4
The cylinder replaces the hydraulic cylinder, with less pollution and low noise; equipped with high pressure and double crank connecting rod-clamping, providing high clamping force.
ADVANTAGE 5
Low-temperature cooling system protection and, a low scrap rate, it is an ideal model for the economical production of wide-mouth bottle equipment.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.

Q3: How about quality control in your factory?
A3: " Quality is the key point, do what customers need"
Eceng Machinery Factory focuses on quality, and quality control from beginning to end. Every piece of goods is tested strictly before packing and delivery.

Q4: How about guarantee?
A4: One-year guarantee.

Q5: Do you provide bottle blow mold and air compressor?
A5: Yes, we provide a complete system and you will not need to find a suitable air compressor chiller...etc.

Q6: What is the language of the PLC and touch panel?
A6: Don't worry, we will translate the language into English, Spanish, or any other language, to make sure you will have an easy operation.
