Stainless Steel Press Plate for Laminating Press Machine

Product Description

Hardened Stainless Steel Press Plates provide the finished appearance of laminates (flooring, furniture board, veneer and film faced plywood), and HPL providing natural, novel patterns and strong decorative effects Product details

No.	Name	Specification
1	size	4'*8',4'*9',4'*10', 5'*8',5'*9',5'*10', 6'*8',6'*9',6'*10';
2	material	304 S/S, 410 S/S, 633 S/S;

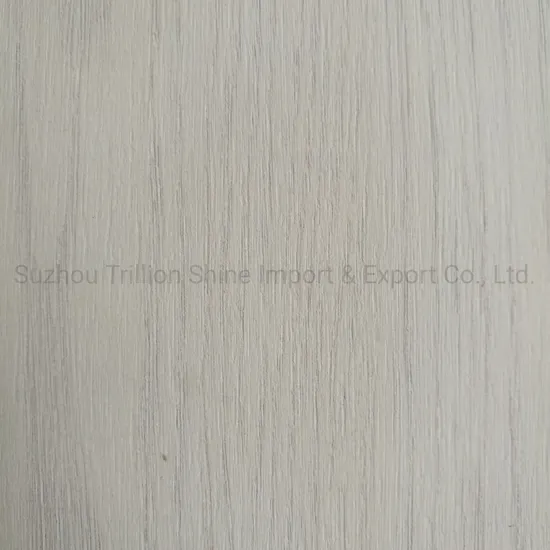

3	pattern	Glossy, Matt, Pearl, Suede,Wood,Cloth, Leather, Stone, Wood grain and other Artistic grain finishes. Other patterns are also customizable according to the customer's samples or drawings
4	thickness	3-6mm
5	engraving	One side; two sides (for HPL only)
6	coating	chrome
7	Application	The production of HPL, laminate MDF / HDF / Particle Board and etc.

Comparison of raw materials

Steel Garde Data	304 S/S	410 S/S	Hard steel 633
Composition	C 0.08% Cr 18% Ni 9%	C 0.12% Cr 13%	C 0.09% Cr 17% Ni 10%
Volume weight	7.93	7.7	7.98
Tensile Strength (M Pa)	520	1200	1200
Hardness (Hrc)	18-20	38-40	38-42
Ductility (EL%)	≥40	<1	<5
Thermal Conductivity (w/m.k)	16.3	25	19
Thermal Expansion	20*10-6/°C	11*10-6/°C	12*10-6/°C
Max Dimension (mm)	2040*7600	2400*7600	2040*7600
Advantage/Disadvantage	stable quality, easy to scratch. low price	Hard steel, stable quality, no easy to scratch high price.	Hard steel, stable quality, not easy to scratch, high price

Our ServicePre-sale service:
1) Free consultation on any aspect of equipment/production line;
2) The professional materials & flow chart;
3) Offering the reasonable plan & proposal as per customer's specific requirements;
4) Related reception for equipment inspection;

In-sale service:
1) Oversea equipment installation & commissioning;
2) Personnel training;

After-sale service:
1) 24 hours online service;
2) Video for equipment maintenance;
3) One year quality warranty;
To provide the quality and cost-effective production is our advantage. We are waiting for your inquiry.
