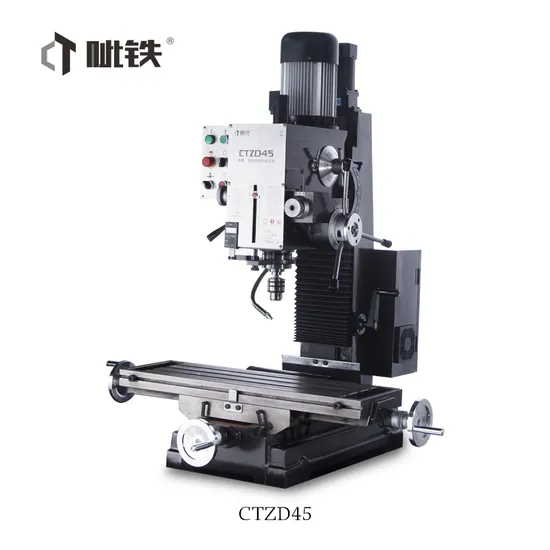

Brushless Motor Drilling Milling Machine with Variable Speed Ctzd45
Basic Info.
Model NO.
CTZD45
Type
Worktable Milling Machine
Object
Gear
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1150*1070*1430mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
500
Product Description
| Max.Drilling capacity | 45mm |
| Max.milling capacity | 80mm |
| Max.vertical milling capacity | 32mm |
| Max. tapping | M30 |
| Table size | 800x240mm |
| Range spindle auto-cutting/Grade | 0.06~0.30/prm(3) |
| X spindle travel | 580mm |
| Y spindle travel | 275mm |
| Z spindle travel | 450mm |
| Spindle taper | MT4 |
| Spindle travel | 130mm |
| Distance from spindle to column guide rail | 260mm |
| Spindle box left&right rotation angle | ±90 |
| Spindle speed range | 80~1250rpm |
| Motor Power | 1.5KW |
| Net weight/Gross weight | 400KG/450KG |
| Overall dimensions | 1150x1070x1430mm |
| Package Size | 720x720x1050mm |
