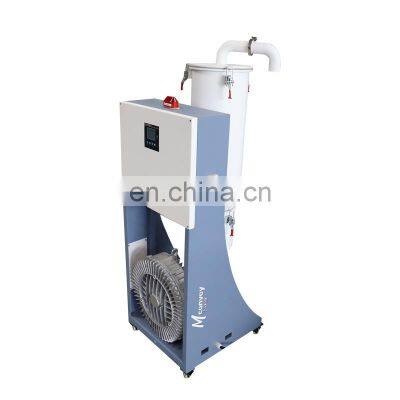

Industrial plastic pvc auto hopper loader machine, vacuum loader for plastic material

Product Description

Product Description
Features:* With a lower suction design, it has a cyclone baffle and separate dust bucket under the filter, which can effectively reduce the load of the filter;* Separate dust bucket for easy dust removal;* With the electrical control function of the two-ingredient proportional valve, it can be directly equipped with a two-ingredient proportional valve;* The hopper loaders above 5HP are equipped with a vacuum breaking valve, which can effectively increase the suction capacity;* The main machine is equipped with fault and motor overload indicator lights, which can give an alarm quickly;* The central operation panel can be used to centrally set the suction parameters of each station;* The main machine is equipped with a suction overtime and fan overload alarm device.Scope of application:* Providing high-pressure vacuum (negative pressure) power, it is mainly used in the central feeding system or single-machine feeding applications. The start of the fan in the central feeding system can be connected to and controlled by the centralized control station;* It can be used together with different types of hopper loaders based on customer needs to meet the feeding and conveying of granules and powder;* The suction mode of the feeding system can be equipped with a hopper loader to form a feeding loop.Schematic diagram:Specification table:ModelHigh pressure fan power (KW)Conveying capacity (kg/h)Hopper capacity (L)Air suction port diameter (mm)Material suction port diameter (mm)VoltageLSAL-2HP-UG1.55001238383¢, 400V, 50HzLSAL-5HP-UG3.7510002550.850.83¢, 400V, 50HzLSAL-10HP-UG7.516005063633¢, 400V, 50HzLSAL-5HP-UG-23.7510002550.850.83¢, 400V, 50HzLSAL-10HP-UG-27.516005063633¢, 400V, 50HzLSAL-5HP-UG-43.7510002550.850.83¢, 400V, 50HzLSAL-10HP-UG-47.516005063633¢, 400V, 50HzConveying capacity reference: horizontal - 4 meters, vertical - 4 meters, raw material - ABS granules; bulk density - 0.65kg/LProduct Display
