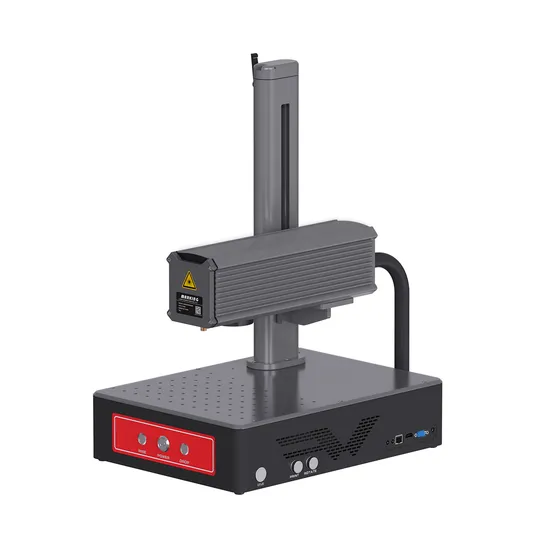

Faith 10W/20W/30W/50W/100W Fiber /CO2 /UV Mini Desktop Laser Marking Metal Stainless Steel Raycus Laser Marker Engraver Laser Marking Machine

Product Description

Product Description
Faith 20/30/50/80W/100W 3D Color CO2 UV Fiber Production Line Galvo Fiber Laser Printer Marking CNC Engraving Machine for PVC PE Pipe
There are three colors to choose from, click here to contact us
We also have other types of laser marking machines in our shop:
UV laser marking machine
Fiber laser marking machine
CO2 laser marking machine
PL130 Laser Marking Machine Parameter

Product Name	Static fiber desktop laser engraving marking machine
Laser Power	20W/30W/50W
Laser Wavelenghth	1060nm
Beam Quality	<2(M2)
Laser Type	Pulse or Continuity
Cooling System	Air Cooling
Power Supply	200V,50Hz
Operating Environment	Temperature:-20ºC-45ºC relative humidity 80%
Marking Depth	10w 0.3mm or less 20w 0.5mm or less 30w 0.7mm
Marking Speed	7000 mm/s or less
Marking Range	Standard plane 110mm*110mm can be customized
Minimum of characters	0.15mm
Minimumline width	0.012mm
Repeat precision	+/- 0.002
Operating system	Win 98/ Win 2000 / Win XP/ Win 7
Graphiceditor	Software provide self editor,computer input,plane circumference,fan-shape distribution and end.
Graphic conversion	Software to provide Auto CAD Corel DrawCAXA graphic file conversio

Application of PL130 laser marking machine 1. It can process various metal and non-metal materials. Especially suitable for high hardness, high melting point and brittleness.The advantages of material marking are more obvious.
2. It belongs to non-contact processing, no damage to the product, no tool wear, and good marking quality.
3. The laser beam is thin, the processing material consumption is small, and the processing heat-affected area is small.
4. High processing efficiency, computer control, easy to realize automation
5.Engraving of various metals and some non-metals metal alloy materials, plastics, rubber, leather and other materials.Satisfy high-speed production requirements such as automotive, electronics, and medical processing.Engravable patterns, text, Dat Matrix QR code, serial number, counters, dates, shifts, variables, etc.
Meet the high-speed production requirements of automobile, electronics, medical machinery processing, etc
Genuine software features powerful
High-precision correction/support system/support language
We have a variety of FIBER CO2 UV laser marking machines of different sizes, you can find any type you want here to meet your needs.


Our Advantages
Product features
1. Ultra-high configuration
Optional domestic or imported laser and high-speed galvanometer.
2. No maintenance required
The average working time can reach 100,000 hours without adjusting or cleaning the lens.
3. No consumables required
Without any consumables, non-toxic, no environmental pollution, high environmental protection.
4. Red light positioning
The red light positioning system is adopted, which is convenient for positioning and has high positioning accuracy.
5. Extended functions
Expandable with additional functions. Such as circle marking, XY electric table,
Automatic feeding flight marking, etc.
6. Deep marking
The high-speed scanning galvanometer can make the workpiece white, black and deep.
Detailed Photos
Adjustable manual Lifting function
According to the size of the object to adjust the focus for engraving


Compact Size
The Machine Weighs Only 25kg And Can Be Packed Into Your Suitcase For Easy Carrying
Air Cooling
Add Heat Sink Position Design Can Make The Motor Motherboard Temperature Control Balance So That The Machine
High Speed Galvanometer
The Machine Adopts Sinogalvo High-Speed Galvanometer To Ensure The Stability Of Printing Process
Flexible Match Of Field Lens
The Machine Adopts The Singapore Wavelength High Transmittance Galvanometer.The Printing Range Can Be Adjusted From 12*12cm To 40*40cm By Changing Galvanometer
High-Speed Board
Original Ezcad Control Board Brand Authorization/Special Customization System Compatibility Need For A Separate Dongle Course Secondary Development/Customization
Connectable Rotator
The Machine Can Be Equipped With Optional Rotator To Print The Arc Object
Red Light Preview
The Red Light Produces A Rectangular Frame Which Clearly Indicates The Specific Range Of Printing
Aao Work Bench
Integral More Solid/Hole Location Industry Standardization The Applicability Is More Extensive And Flexible
System composition
Adopt top-grade transmission technology
Configuration introduction
-Optional imported or domestic fiber laser
-High-speed scanning galvanometer
-Ezcad marking software
Singapore Wavelength Field Mirror
-Independent power control boX
-Industrial computer and LCD display
-Optional rotating fixture
Packaging & Shipping
Packing List

Name of a single accessory attached	Quantity
Optical fiber laser machine cabinet	1
Laser	1
Scanning galvanometer	1
General control power box	1
3D lifting bracket	1
15 inch LCD display	1
Professional date line	1
Foot swich	1

Please contact me if you are interested! FAQ
1.What are the primary products of your company?
Our primary products include laser marking machine, inkjet printer machine,paging machine.
2.Where is your laser marking machine applied to?
Our laser equipment is applied to metal, non-metal, textiles, leather, shoes, advertisement, gifts, electronic components, stamp,etc
3.Which countries are your laser machinery sold to?
Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia,
Turkey, India, Italy, and other countries.
4.How long is the delivery time?
The products will be delivered to you within one week after the order is confirmed.
5.What certificate has your company got?
All of our product with CE, ISO
Certifications
Certificate

Company Profile
About company
Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integrates independent research and development, production, sales and service. It specializes in providing industrial coding technology and traceable system solutions. The company was founded in 2010 with a 30-person team and a 500m² production workshop. After more than 10 years of unremitting efforts, by early 2020, it has developed into an excellent team of 300 people and a 2500m² production workshop. The company's products mainly include laser marking machines, CIJ printers, TIJ printers, and conveyor belts. The products are exported to Spain, the United States, Brazil, Argentina, Chile, Saudi Arabia, the UAE, Egypt, Ecuador and other 126 countries, serving more than 200,000 customers. The company's philosophy is focus on coding, treats quality as the base and service-oriented principles. Shenyang Faith Technology's vision is to become the most professional, caring and trustworthy enterprise in the printing industry.
Feed Back
For more than 11 years, Faith products have been exported to 126 countries, occupying 7% of the industry's market share, and customers all over the worldIf you have any questions, please feel free to contact me, I will do my best to give you a satisfactory answer.
what service can we provide for you?
24 hours after sales online, / no matter you are looking for help anywhere, anytime, we can respond quickly
Excellent technical consultant, provide the best online solution.
Three-year warranty, during the warranty period we provide professional, considerate and timely after-sales service.Give backFor more than ten years, Faith products have been exported to 126 countries, accounting for 7% of the industry's market share, and customers all over the world have won unanimous praise from everyone.
After payment is completed, your order will be shipped within 3 daysWe use express ups, dhl, ems, fedex, and the package will reach your hand in 3-12 business days.
