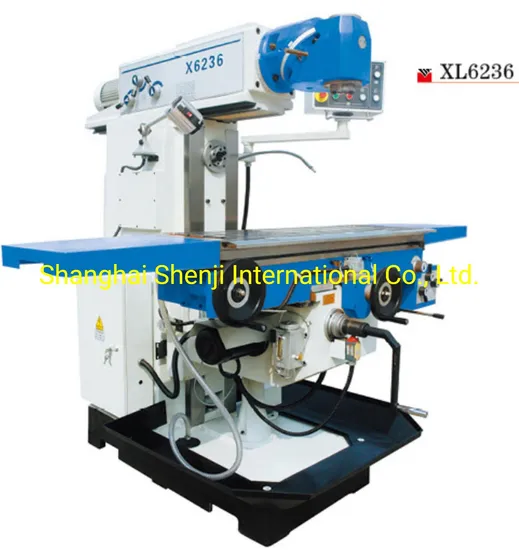

Metal Universal Swivel Head Horizontal Vertical Milling Machine XL6236 X6236
| US$2,500.00-4,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
XL6326
Object
Matel
Structure
Turret
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1250X360mm
Transport Package
Wooden Case
Specification
1600x1750x2200mm
Trademark
SJMC
Origin
China
Production Capacity
20untis/Month
Product Description
Metal universal swivel head horizontal vertical milling machine XL6236 X6236sturdy, zero-backlash rectangular guidewaysUniversal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)rapid feeds on all axes allow quick positioningcontrol panel swivels for comfortable operationseparate drives with gearbox for powerful material removallarge machine table with one 1000 mm X travel
| SPECIFICATION | UNIT | X6236 |
| Spindle taper | | 7:24 ISO40(V);7:24 ISO50(H) |
| Distance from spindle center line to column surface | mm | 350~850 |
| Distance from spindle nose to worktable | mm | 210~710 |
| Distance from spindle center line to worktable | mm | 0~500 |
| Distance from spindle center line to arm | mm | 175 |
| Spindle speed | r/min | 11steps 35~1600 (V) ; 12steps 60~1800 (H) |
| Worktable size | mm | 1250×360 |
| Worktable travel X/Y/Z | | 1000/320/500 |
| Worktable longitudinal/ cross power feed | mm/min | 8steps 15~370 ;Rapid:540 |
| Worktable elevating power feed | mm/min | 590 |
| T Slot numbers/width/distance | | 3/18/80 |
| Main motor | Kw | 2.2 (V) 4 (H) |
| Worktable power feed motor | W | 750 |
| Worktable elevating motor | KW | 1.1 |
| Coolant pump | W | 90 |
| Coolant flow | L/min | 25 |
| Overall dimension (L×W×H) | mm | 2220×1790×2040 |
| Net weight | kg | 2400 |
