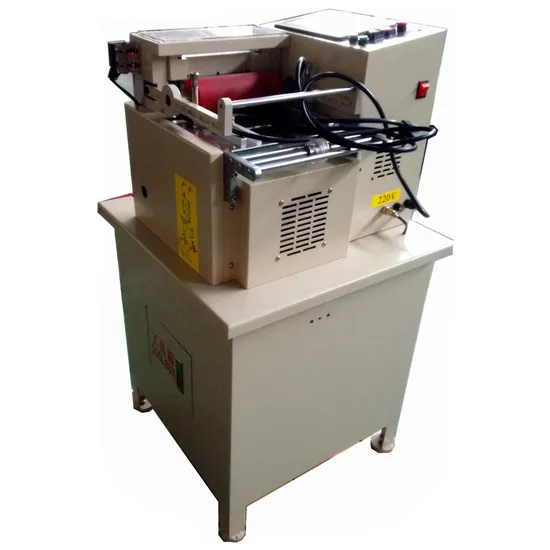

Automatic Tape/Band/ Tube/Pipe/Belt Cutting Machine
Basic Info.
Model NO.
DP-105
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Power Supply
Electric
Applicable Material
Rubber, Plastic
Dp-105
Computer Cutting Machine
Application
Shoe Rope Cutting Machine
Max Cutting Width
160mm
Hotmelt or Not
Hot Cut
Classification
Cutting Machine
Over-Lock Stitch
No
Nailcatcher Machine Stitch
Belt Cutting Machine
Buttonholing Machine Type
Belt Cutting Machine
Type
Accessories
Transport Package
Wooden Case
Specification
SGS
Trademark
DP
Origin
Jiangsu Kunshan
HS Code
8501109101
Production Capacity
1000pic/Year
Product Description
DP-105 Computer cutting machineFunctional characterisitics:
Full computer control ,Numerical settings for length cutting ,Easy operation and low materials lost ,Production quantity counting device ,Pneumatic driven cutting blade with high pracision ,Zero degree to 45 angle adjustable ,Square ,single oblique and two-ways oblique cutting shapes.
Scope appliable :
Precision cutting of nyon beltings ,PVC ,plastics ,wire streth ,safety belt ,adhesive coated fabrics ,duct cover ,fabric webbing ,elastic webbing ect.
| model | DP-105 | DP-101A |
| Voltage | 110V220V | 110V220V |
| power | 1/2HP | 1/2HP |
| Net weight | 85KGS | 80KGS |
| Gross weight | 150KGS | 150KGS |
| Volume | 65*80*120CM | 65*80*120CM |
| cutting length | 1MM-100.000MM | 1MM-100.000MM |
| cutting width | 1-75MM | 1-160MM |
| Feeding speed | 20.000MM-120.000MM/MIN | 20.000MM-120.000MM/MIN |
1. The max width: 160mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
Bobbin feeder for belt cutting machine :
Video http://youtu.be/9tx8qZ48LfA?list=UUKzn2_YUjZc_nkjjFRC07NQ
Rope hot cutting http://youtu.be/ojjHrj9W13g?list=UUKzn2_YUjZc_nkjjFRC07NQ
