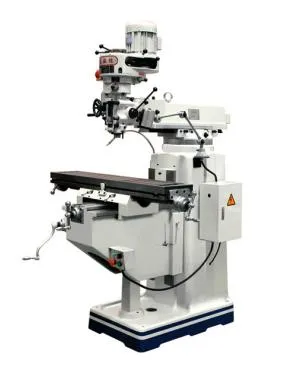

Knee-Type Universal Vertical Lifting Turret Milling Machine X6325

Product Description

Turret Milling Machine X6325

16 speed milling head, Made in Taiwan
Optional selection: variable,combination type and inverter type.
XYZ-axis screw are made inTaiwan with good smooth and reliable features.
Table surface is treated specially to harden HRC45-55.
Standard electrical box with domestic brand electronics components, also international renown brand.
XYZ-axis guide-way surface are treated specially to harden HRC45-55.
Standard control panel,the optional is as.
Specification:

Model No.	X6325
Item No.
Specifications
Table size	254X1270 (10"x50) mm
Long travel	840 mm
Cross travel	400 mm
Vertical travel	400 mm
T-slot No.and size	3x16 mm
Ram travel	470 mm
Distance from spindle nose to table surface	0~400 mm
Spindle
Spindle hole taper	standard:R8 optional:ISO30/ISO40
Spindle travel	127 mm
Spindle speed	standard:shiftgrade 50HZ66-4540 60HZ:80-5440,optional:variable60-4200
Auto.quill feed	Three steps:0.04(0.0015"V0.08(0.003)"0.15(0.006")mm/revolution
Spindle moto	2.25 kw/3HP
Head swivel	90°
Head tilting	45°
Dimension of package
One miller per case	1516x1550x2080
Two miller per case	1650x1790x2170
Three miller per case	1650x2285x2235
G.W/set	1200

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
