Universal RAM Knee-type DRO Milling Machine X6436
| US$10,000.00-28,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
X6436
Structure
Ram
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1325X360mm
RAM Travel
550mm
Table Travel (X/Y/Z)
1100X320X450mm
Main Motor Power
5.5kw(H) 4kw(V)
Distance Between Spindle Nose and Table
196-656mm
Distance Between Horizontal Nose and Tab
20-480mm
Distance Between Spindle Axis and Arm Su
200mm
T-Slots(No./Width/Pitch)
3/18/80mm
3-P Feed AC Servo Motor Torque
10 N.M
Transport Package
Wooden Case
Specification
2245x2100x2000mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8459699000
Production Capacity
300 Sets/Month
Product Description

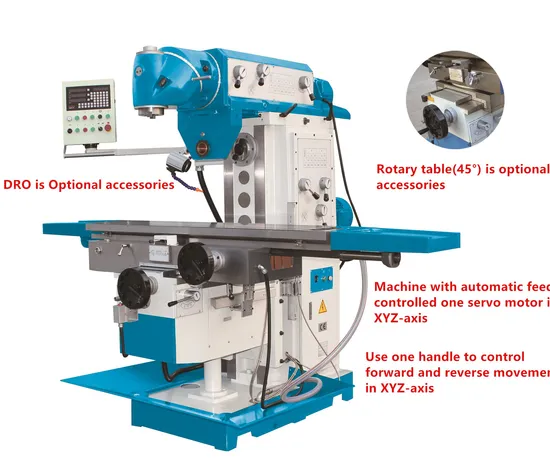

Features: * The milling machine with automatic feed controlled one servo motor in X,Y,Z-axis;* One handle is used to control forward/backward movement in X,Y,Z-axis
| Specifications | Unit | XL6436 | XL6436C | XL6436CL | |
| Table size | mm | 1325×360 | 1600×360 | ||
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 | |
| Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | |||
| Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) | ||||
| Arm travel | mm | 550 | |||
| Distance between spindle nose and table surface | mm | 196-656 | 196-646 | ||
| Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | ||
| Distance between spindle axis and arm surface | mm | 200 | |||
| Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | |||
| T-slots(NO./width/pitch) | mm | 3/18/80 | |||
| Main motor power | Kw | 5.5 (H) 4 (V) | |||
| 3-P feed Ac servo motor torque | N.m | 10 | |||
| Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2520×2100×2000 | |
| Net weight | kg | 2685 | 2750 | 2800 | |
Standard accessories:
| Name | Model no. | QTY |
| 7:24 middle cover | 7:24 ISO50/MS4 | 1 |
| Horizontal arbor assembly | Ф27 | 1 |
| Horizontal arbor assembly | Ф32 | 1 |
| Drawbar | M24 | 2 |
| Double-ended wrench | S22-24 | 1 |
| Double-ended wrench | S17-19 | 1 |
| Double-ended wrench | S36-41 | 1 |
| Inner hexagonal wrench | 5 | 1 |
| Inner hexagonal wrench | 10 | 1 |
| Inner hexagonal wrench | 14 | 1 |
| sleeve | M24 | 1 |
| Washer | M24 | 1 |
| Taper shank sets milling cutter arbor | 7:24 ISO50-Ф32 | 1 |
| Work lamp | incandescent lamp | 1 |
| Coolant system | 1 | |
| Manual lubrication | ||
| Chip tray | 1 |
PACKING, FIXING AND SHIPMENT
CUSTOMERS VISITING & EXHIBITION
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
